Nissan Rogue Service Manual: Front power window motor
Removal and Installation
REMOVAL
- Remove front door glass regulator. Refer to GW-16, "Removal and Installation".

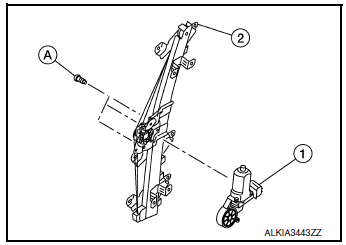

- Remove screws (A) and front power window motor (1) from front door glass regulator (2).
INSTALLATION
Installation is in the reverse order of removal.
