Nissan Rogue Service Manual: Rear power window motor
Removal and Installation
REMOVAL
- Remove rear door glass regulator. Refer to GW-22, "Removal and Installation".

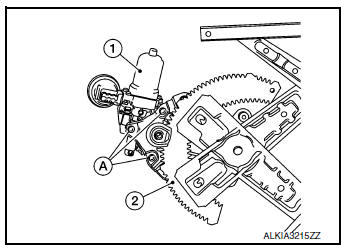

- Remove screws (A) and rear door power window motor (1) from rear door glass regulator (2).
INSTALLATION
Installation is in the reverse order of removal.
Rear regulator
Exploded View
Rear door panel
Rear door glass corner finisher
Rear door glass rear run channel
Rear door regulator assembly
Rear door glass power window motor
Rear door glass
& ...
Quarter window glass
Exploded View
Quarter window glass
Quarter window glass molding
Body side outer
7.0 mm (0.28 in)
12.0 (0.47 in)
Adhesive
Clip
Removal and Installation
REMOVAL
&nb ...
