Nissan Rogue Service Manual: Rear power window switch
Removal and Installation
REMOVAL

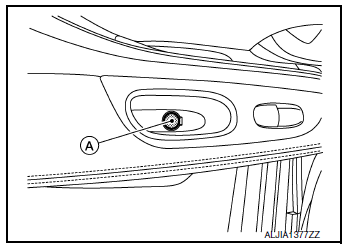

- Remove screw cover (1).

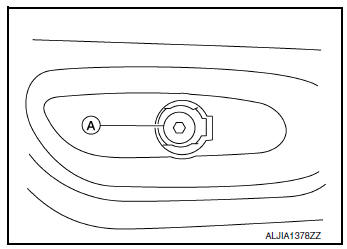

- Remove screw (A).

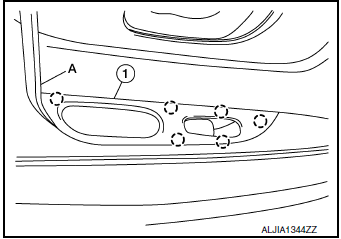

- Release pawls using a suitable tool (A) and remove rear power
window switch finisher (1).
: Pawl
- Disconnect harness connector from rear power window switch.

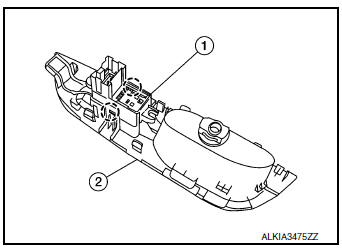

- Release the pawls, then separate the rear power window switch
(1) from the switch finisher (2).: Pawl
INSTALLATION
Installation is in the reverse order of removal.
