Nissan Rogue Service Manual: Rear stabilizer

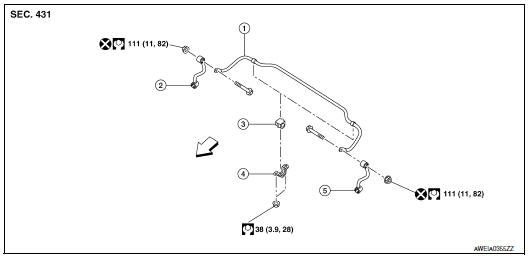

Exploded View
- Rear stabilizer bar
- Connecting rod (RH)
- Rear stabilizer bar bushing
- Rear stabilizer bar clamp
- Connecting rod (LH)
Front
Removal and Installation
REMOVAL
- Disconnect rear stabilizer links from rear stabilizer bar.
- Remove nuts on rear stabilizer clamp.
- Remove rear stabilizer bar from rear suspension member
- Remove rear stabilizer bushings from rear stabilizer bar (if necessary).
- Perform the inspection after removal. Refer to RSU-21, "Inspection".
INSTALLATION
Installation is in the reverse order of removal.
Inspection
INSPECTION AFTER REMOVAL
Check rear stabilizer bar, rear stabilizer link, rear stabilizer bushing and rear stabilizer clamp for deformation, cracks or damage. Replace it if necessary.
Upper link
Exploded View
Rear suspension member
Upper link
Rubber washer (LH/RH)
Rear suspension arm
Front
Removal and Installation
REMOVAL
Remove wheel and tir ...
Unit removal and installationEMBER
REAR SUSPENSION M
Exploded View
Rear suspension member
Suspension member stay
(RH)
Suspension member stay (LH)
Bound bumper
Front
Removal and Installation - F ...
