Nissan Rogue Service Manual: Rear wiper arm

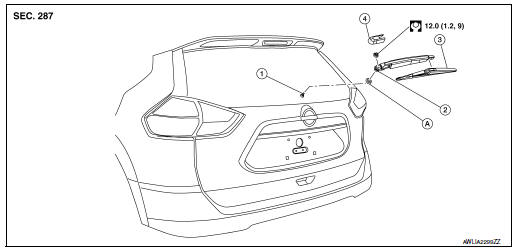

Exploded View

1. Rear wiper motor
2. Rear wiper arm
3. Rear wiper blade
4.  Rear wiper arm cover
1. Seal

Removal and Installation

REMOVAL

1.  Check that the rear wiper is in the auto stop position.
2.  Remove the rear wiper arm cover.
3.  Remove the rear wiper arm nut from the rear wiper arm.
4.  Remove the rear wiper arm.

INSTALLATION

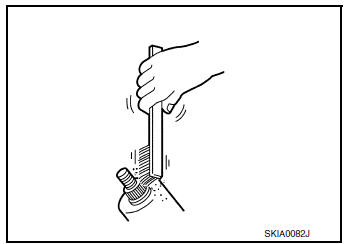

1.  Clean the rear wiper arm mount as shown, to prevent the possibility of rear wiper arm looseness.

2. Check that the rear wiper is in the auto stop position.
3.  Adjust the rear wiper blade position. Refer to WW-70, "Adjustment".
4.  Install the rear wiper arm.
5.  Instal the rear wiper arm cover.
6.  Check that the rear wiper blades stop at the specified position. Refer to WW-70, "Adjustment".

Adjustment

1. Defrosting wire

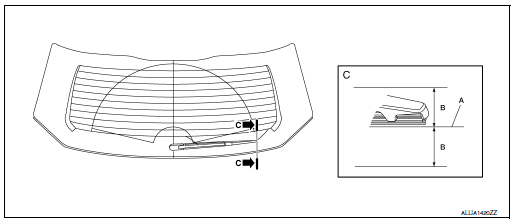

Position the wiper blade on top of the defrosting wire (A).

B: ± 7.5 mm (0.787 ± 0.295 in)
