Nissan Rogue Service Manual: Rear wiper motor

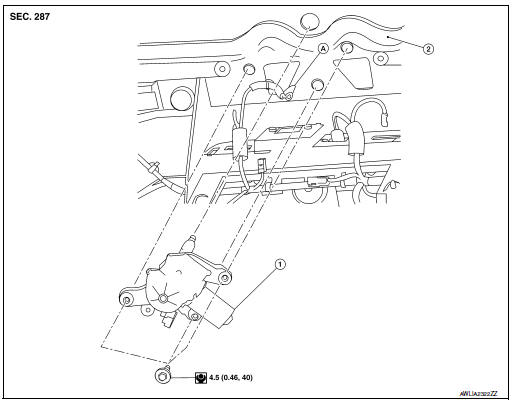

Exploded View
- Rear wiper motor
- Back door
- Rear wiper motor harness
Removal and Installation
REMOVAL
- Remove rear wiper arm. Refer to WW-69, "Removal and Installation".
- Remove back door finisher. Refer to INT-38, "Removal and Installation".
- Disconnect the harness connector from the rear wiper motor.
- Remove bolts and the rear wiper motor.
INSTALLATION
Install in the reverse order of removal.
Rear wiper arm
Exploded View
Rear wiper motor
Rear wiper arm
Rear wiper blade
Rear wiper arm cover
Seal
Removal and Installation
REMOVAL
Check that the rear wiper is in the aut ...
Rear washer nozzle and tube
Exploded View
Rear washer tube
Rear grommet
Clip
Removal and Installation - Rear Washer Nozzle
REMOVAL
Remove rear access panel. Refer to INT-38, "Exploded View". ...
