Nissan Rogue Service Manual: Second row seats

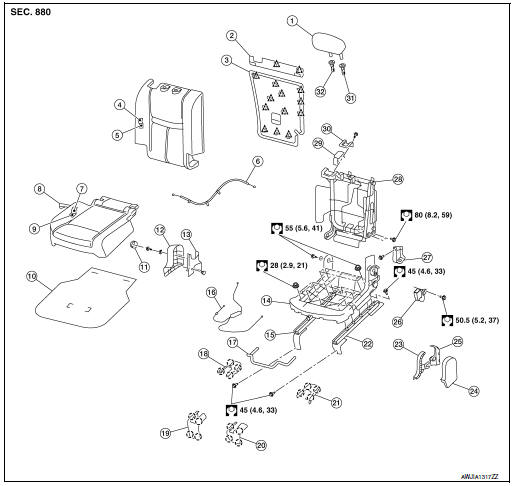

Exploded View

RH SEAT

1. Headrest
2.  Seatback upper luggage board
3.  Seatback luggage board
4.  Seatback trim
5. Seatback pad
6. Recline release cable
7. Seat cushion trim
8. Fold flat strap
9. Seat cushion pad
10. Seat cushion silencer
11. Bolt cover
12.  Seat cushion outer finisher (RH)
13.  Seat cushion inner finisher (RH)
14. Seat cushion frame
15. Seat cushion slide (RH)
16.  Seat cushion slide cable
17. Seat slide control lever
18. Rear bolt cover (RH) (with third row seat)
19.  Front bolt cover (RH)
20. Front bolt cover (LH)
21.  Rear bolt cover (LH) (with third row seat)
22.  Seat cushion slide (LH)
23. Seat cushion inner finisher (LH)
24.  Seat cushion outer finisher (LH)
25.  Seat cushion rear finisher (LH)
26. Seat belt buckle
27.  Recline lever finisher
28.  Seatback frame
29.  Recline device
30.  Recline device cover
31.  Headrest holder (locked)
32.  Headrest holder (free)

Clip
Pawl

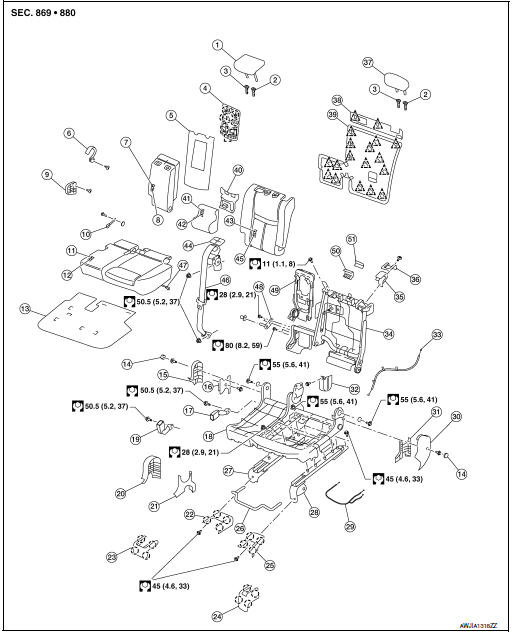

LH SEAT

1. Headrest (center)
2. Headrest holder (locked)
3. Headrest holder (free)
4. Cup holder
5. Armrest board
6. Armrest inner finisher
7.  Armrest trim
8. Armrest pad
9. Armrest outer finisher
10.  Armrest fold flat strap
11. Seat cushion trim
12. Seat cushion pad
13.  Seat cushion silencer
14. Bolt cover
15. Seat cushion outer finisher (RH)
16.  Seat cushion inner finisher (RH)
17. Seat belt buckle (center)
18.  Seat cushion frame
19.  Seat belt buckle (LH)
20.  Seat cushion center finisher (RH)
21.  Seat cushion center finisher (LH)
22.  Rear bolt cover (RH) (with third row seat)
23.  Front bolt cover (RH)
24.  Front bolt cover (LH)
25. Rear bolt cover (LH) (with third row seat)
26. Seat slide control lever
27. Seat cushion slide (RH)
28.  Seat cushion slide (LH)
29. Seat cushion slide cable
30. Seat cushion outer finisher (LH)
31.  Seat cushion inner finisher (LH)
32.  Armrest inner finisher
33. Recline release cable
34.  Seatback frame
35. Recline device
36.  Recline device finisher
37.  Headrest (LH)
38. Seatback luggage upper board
39.  Seatback luggage board
40.  Armrest lower pad
41.  Seatback center trim
42.  Seatback center pad
43.  Seatback trim
44.  Seat belt retractor finisher
45.  Seatback pad
46.  Seat belt retractor (center)
47. Fold flat strap
48.  Armrest bracket
49.  Armrest frame
50.  Seat belt retractor inner finisher
51.  Seat belt retractor outer finisher

Clip
Pawl

Removal and Installation

LH SEAT

CAUTION: During removal and installation, an assistant is required to protect against injury or damage.

Removal

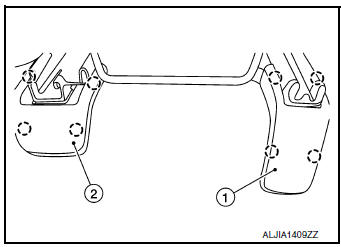

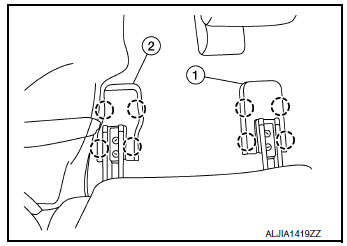

1.  Using a suitable tool release pawls and remove front bolt covers RH (2) and LH (1).

   :Pawl

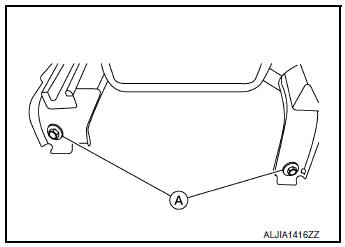

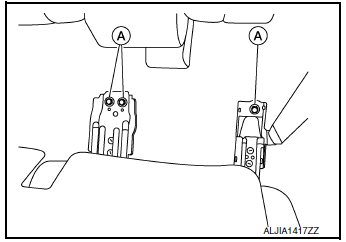

2. Remove the seat front bolts (A).

3. Slide the seat to the full forward position.

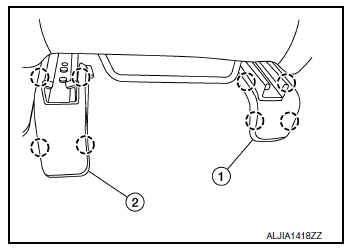

4.  Using a suitable tool release pawls and remove rear bolt covers RH (2) and LH (1) (with third row seat).

   :Pawl

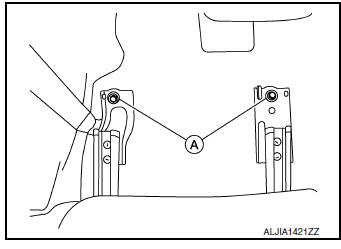

5. Remove the seat rear bolts (A).

6. Fold the seatback to the flat position, then remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

RH SEAT

CAUTION: During removal and installation, an assistant is required to protect against injury or damage.

Removal

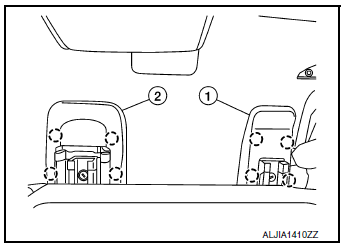

1.  Using a suitable tool release pawls and remove front bolt covers LH (1) and RH (2).

   :Pawl

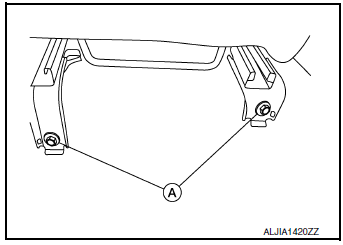

2. Remove the seat front bolts (A).

3. Slide the seat to the full forward position.
4. Using a suitable tool release pawls and remove rear bolt covers RH (2) and LH (1) (with third row seat).

   :Pawl

5. Remove the seat rear bolts (A).

6. Fold the seatback to the flat position, then remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.
