Nissan Rogue Service Manual: Service data and specifications (SDS)

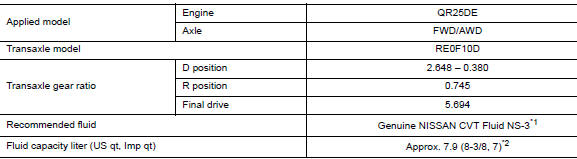

General Specification
CAUTION:
- Use only Genuine NISSAN CVT Fluid NS-3. Never mix with other fluid.
- Using CVT fluid other than Genuine NISSAN CVT Fluid NS-3 will deteriorate in driveability and CVT durability, and may damage the CVT, which is not covered by the NISSAN new vehicle limited warranty.
*1: Refer to MA-11, "Fluids and Lubricants".
*2: The CVT fluid capacity is the reference value.

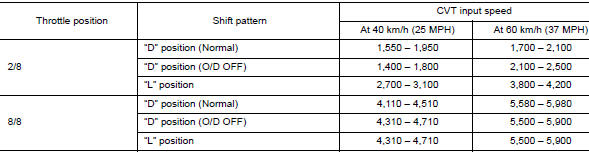

Shift Characteristics
NOTE: Lock-up is engaged at the vehicle speed of approximately 18 km/h (12 MPH) to 25 km/h (16 MPH).
Stall Speed
Torque Converter
Heater Thermostat
Unit disassembly and assembly
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL
Exploded View
Torque converter
O-ring
Converter housing oil seal
Transaxle assembly
: Always replace after every
disassembly.
: A ...
