Nissan Rogue Service Manual: Unit disassembly and assembly

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

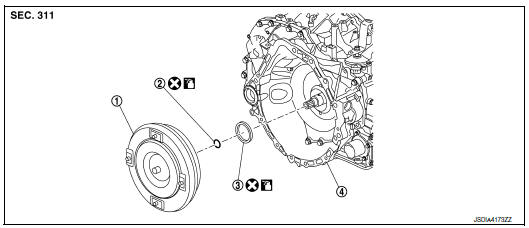

Exploded View

1. Torque converter
2. O-ring
3. Converter housing oil seal
4. Transaxle assembly

: Always replace after every disassembly.
: Apply CVT fluid

Disassembly

1. Remove transaxle assembly. Refer to TM-220, "Removal and Installation".
2.  Remove torque converter from transaxle assembly.

   CAUTION: Never damage the bushing on the inside of torque converter sleeve when removing torque converter.

3.  Remove O-ring from input shaft.
4.  Remove converter housing oil seal using a suitable tool.

   CAUTION: Be careful not to scratch converter housing.

Assembly

Note the followings and assembly is in the reverse order of disassembly.

CAUTION:

•  Never reuse O-ring.
•  Never reuse converter housing oil seal.
•  Apply CVT fluid to O-ring.
•  Apply CVT fluid to converter housing oil seal.

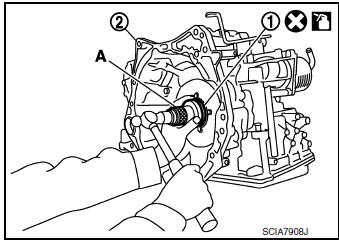

Drive converter housing oil seal 1 evenly using a drift (A) (commercial service tool) so that converter housing oil seal protrudes by the dimension (B) respectively.

2: Transaxle assembly

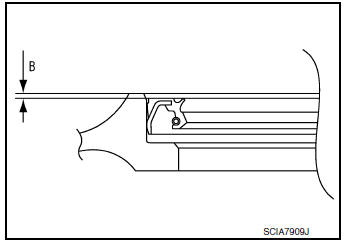

Dimension (B) : 1.0 ± 0.5 mm (0.039 ± 0.020 in)

NOTE: Converter housing oil seal pulling direction is used as the reference.

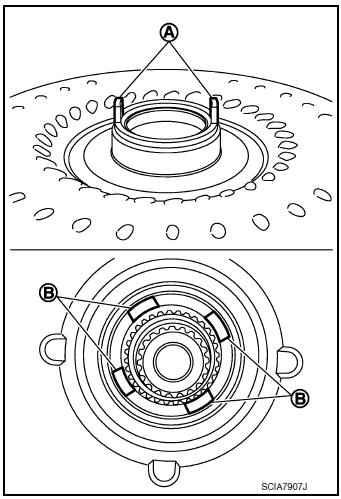

• Attach the pawl of the torque converter to the drive sprocket hole on the transaxle assembly side.

CAUTION:

•  Rotate the torque converter for installing torque converter.
•  Never damage the bushing inside the torque converter sleeve when installing the converter housing oil seal.

Inspection

INSPECTION AFTER INSTALLATION

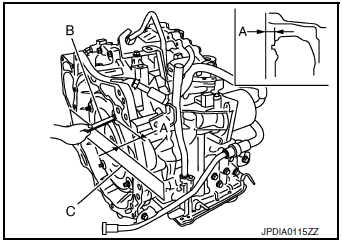

• After inserting a torque converter to the CVT, check dimension (A) with in the reference value limit.

B : Scale
C : Straightedge

Dimension (A) : Refer to TM-226, "Torque Converter".
