Nissan Rogue Service Manual: Service data and specifications (SDS)
Wheel Bearing
Drive Shaft

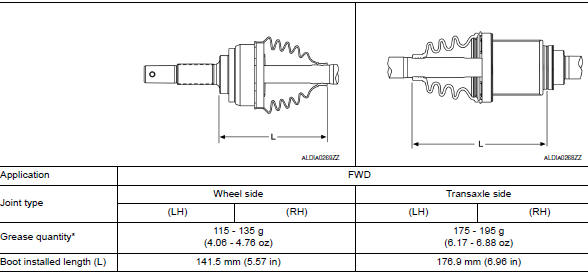

Drive Shaft Specifications
*Always check with the Parts Department for the latest parts information.

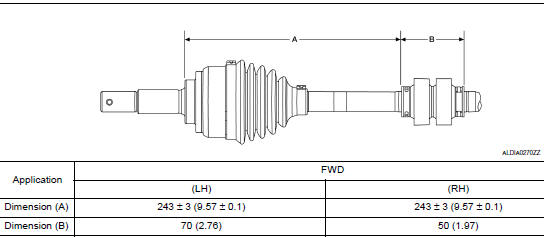

Dynamic Damper Specifications

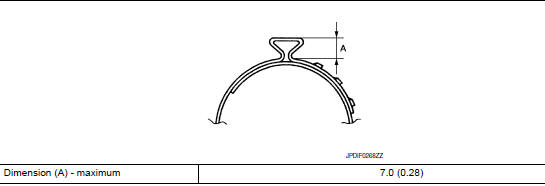

Boot Band Specification
Unit disassembly and assembly
FRONT DRIVE SHAFT
Exploded View (LH)
Shaft
Circular clip
Dust shield
Housing
Snap ring
Spider assembly
Stopper ring
Boot
Boot band
Joint sub-assembly
Wheel si ...
AWD
...
