Nissan Rogue Service Manual: Service data and specifications (sds)
Wheel
ALUMINUM WHEEL
STEEL WHEEL

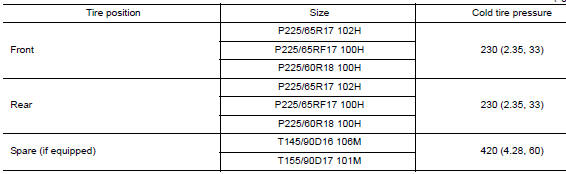

Tire Air Pressure
Tire pressure sensor
Exploded View
Tire pressure sensor
O-ring
Valve stem nut
Valve core
Valve cap
Valve stem assembly
: Parts that are replaced as a
set when the tire is replaced.
...
