Nissan Rogue Service Manual: Front passenger air bag module

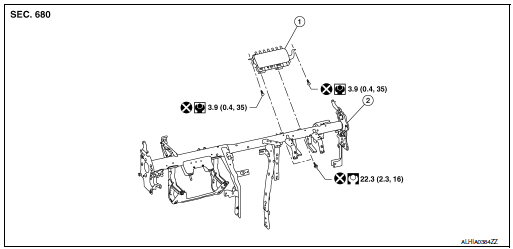

Exploded View

1. Front passenger air bag module
2.  Steering member

Removal and Installation

WARNING:

•  Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at least three minutes.
• Always work from the side of air bag module. Do not work in front of it.
• Do not use air tools or electric tools for servicing.

REMOVAL

1.  Remove the Instrument panel assembly. Refer to IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and Installation".
2.  Remove front passenger air bag module screws.

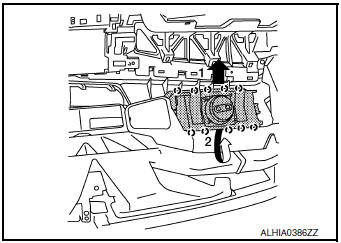

3.  Release the pawls by removing the front passenger air bag module (1) as shown.

: Pawl

CAUTION:

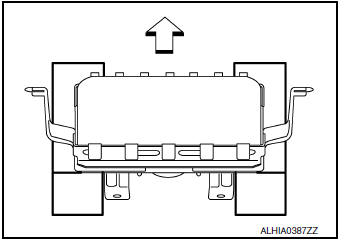

• Always place the front passenger air bag module with pad side facing upward as shown.

: Upward

• Replace the front passenger air bag module if it has been dropped or sustained an impact.
• Do not strike the front passenger air bag module.

• Do not insert any foreign objects (screwdriver, etc.) into the passenger air bag module.
•  Do not disassemble the passenger air bag module.
•  Do not expose the passenger air bag module to temperatures exceeding 90°C (194°F).
•  Do not allow oil, grease, detergent, or water to come in contact with the front passenger air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

•  Do not reuse the front passenger air bag module bolts.
•  Do not damage the front passenger air bag module harness during installation.
•  After installation is complete, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
•  If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with CONSULT".
