Nissan Rogue Service Manual: Spiral cable

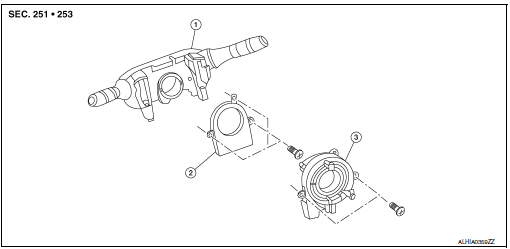

Exploded View

1. Combination switch
2. Steering angle sensor
3. Spiral cabl

Removal and Installation

WARNING:

•  Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at least three minutes.
•  Do not use the air tools or electric tools for servicing.

REMOVAL

1.  Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation".
2.  Remove the steering wheel. Refer to ST-11, "Removal and Installation".
3.  Remove the steering column upper and lower cover. Refer to IP-17, "Removal and Installation".

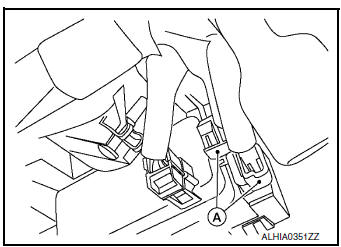

4.  Disconnect harness connectors (A).

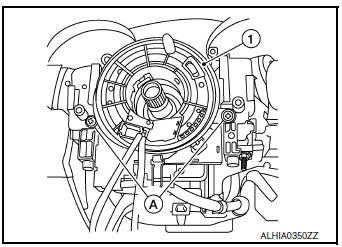

5. Remove screws (A) and then remove spiral cable (1).

CAUTION:

•  Do not strike or drop the spiral cable.
•  Do not turn the spiral cable quickly or beyond the limit number of turns (approximately 2.5 turns from the neutral position), this may cause the cable to snap.
•  Replace the spiral cable if it has been dropped or sustained an impact.
•  Do not disassemble the spiral cable.
•  Do not allow oil, grease, detergent, or water to come in contact with the spiral cable.

INSTALLATION

Installation is in the reverse order of removal.

• The turn signal lever must be in the neutral position for spiral cable installation.

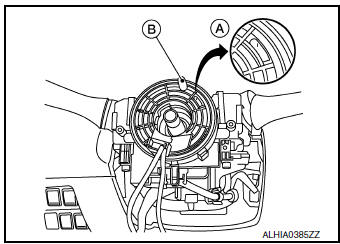

•  Set the spiral cable neutral position by carefully turning the spiral cable clockwise to the end position. Turn the spiral cable counterclockwise 2.5 turns stopping when the locating pin (B) is at the top most position and confirm that a yellow indicator with a vertical black line will be shown in the window (A).

  NOTE: If a new service part is installed, the neutral position is already set with a stopper clip in place and should not be adjusted after the stopper clip is removed. Make sure the stopper is removed before installing the steering wheel.

•  During steering wheel installation, make sure the locating pin hole is aligned with the locating pin (B) of the spiral cable.
•  Adjust the neutral position of the steering angle sensor. Refer to BRC-70, "Work Procedure".

CAUTION:

•  The spiral cable may snap during steering operation if the spiral cable is installed in an improper position.
•  Do not overturn the spiral cable or go beyond the maximum number of turns allowed. This will cause the cable to snap.
•  The turn signal lever must be in the neutral position for spiral cable installation.
•  Do not apply lubricant to the spiral cable.
•  Do not allow oil, grease, detergent or water to come in contact with the spiral cable.
•  After installation is complete, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
•  If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS Final Check. Refer to SRC-18, "Trouble Diagnosis with CONSULT
