Nissan Rogue Service Manual: Steering angle sensor

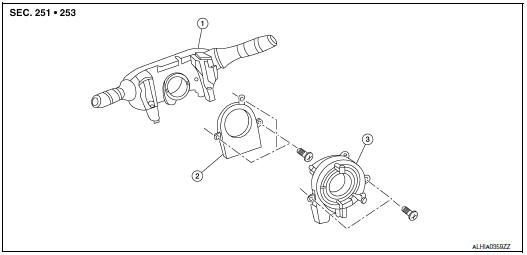

Exploded View
- Combination switch
- Steering angle sensor
- Spiral cable
Removal and Installation
Removal and Installation
- Remove the spiral cable. Refer to SR-15, "Exploded View".

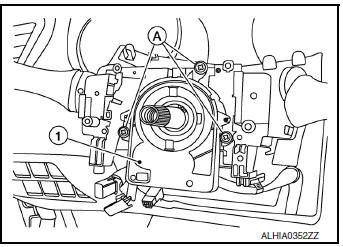

- Remove screws (A) and then remove steering angle sensor (1).
INSTALLATION
Installation is in the reverse order of removal.
VDC off switch
Removal and Installation
REMOVAL
Remove the instrument lower panel LH. Refer to IP-14, "INSTRUMENT
PANEL ASSEMBLY : Removal
and Installation".
Release pawls using sui ...
