Nissan Rogue Service Manual: Standardized relay
Description

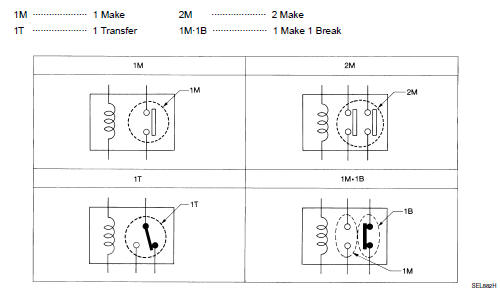

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

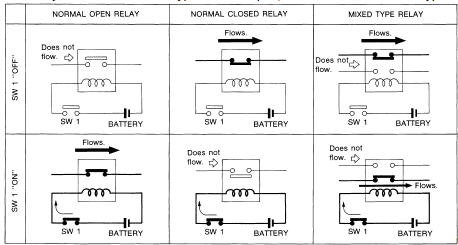

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

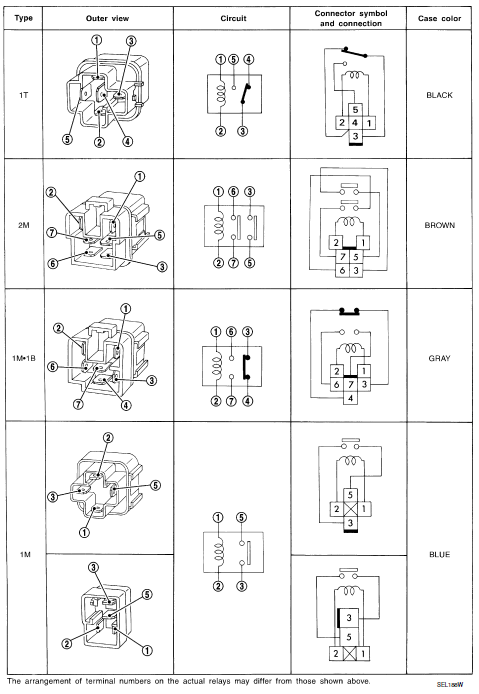

TYPE OF STANDARDIZED RELAYS
Harness connector
Description
HARNESS CONNECTOR (TAB-LOCKING TYPE)
The tab-locking type connectors help prevent accidental looseness
or disconnection.
The tab-locking type connectors are disconnec ...
