Nissan Rogue Service Manual: Symptom diagnosis
COMBINATION SWITCH SYSTEM SYMPTOMS
Symptom Table

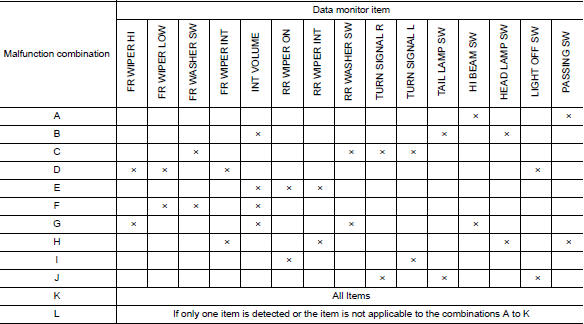

- Perform the data monitor of CONSULT to check for any malfunctioning item.
- Check the malfunction combinations.

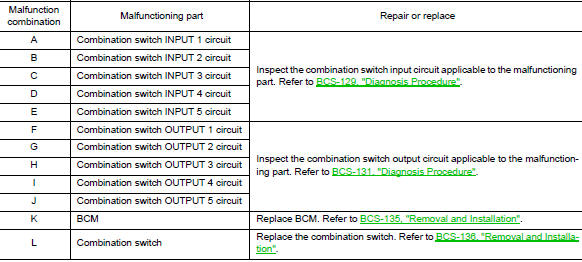

- Identify the malfunctioning part from the agreed combination and repair or replace the part.
NORMAL OPERATING CONDITION
Description
SHIPPING MODE
- Shipping mode inhibits battery power consumption during transportation or storage of the vehicle. Vehicle is set to shipping mode before being shipped from the factory.
- When ignition switch is OFF, BCM operates shipping mode.
- BCM control function is limited in shipping mode. Remote keyless entry function is not operated during the shipping mode.
- For shipping mode cancel operation, refer to BCS-123, "Work Procedure".
NOTE: Do not cancel shipping mode during storage of the vehicle. Always cancel shipping mode before delivery of the vehicle to customer.
DTC/circuit diagnosis
U1000 CAN COMM CIRCUIT
Description
Refer to LAN-8, "System Description".
DTC Logic
DTC DETECTION LOGIC
NOTE:
U1000 can be set if a module harness was disconnected and reconnected, perh ...
Removal and installation
BCM (BODY CONTROL MODULE)
Removal and Installation
CAUTION:
Before replacing the BCM, perform “READ CONFIGURATION” to save or print current
vehicle specification.
Refer to BCS-120, "A ...
