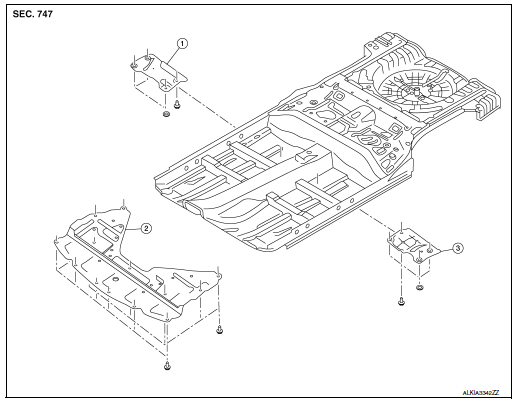

Exploded View

Exploded View

Floor under cover (RH)
Engine under cover
Floor under cover (LH)

ENGINE UNDER COVER

ENGINE UNDER COVER : Removal and Installation

REMOVAL

Remove engine under cover clips.
Remove engine under cover.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: When installing engine under covers, check that clips are securely placed in body panel holes.

FLOOR UNDER COVER

FLOOR UNDER COVER : Removal and Installation

REMOVAL

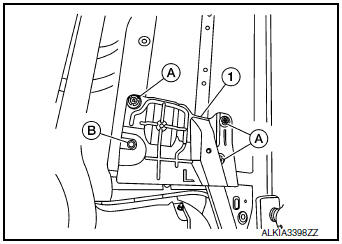

Remove floor under cover clip (B) and nuts (A).
Remove floor under cover (1).

Removal

INSTALLATION

Install in the reverse order of removal.

CAUTION: When installing floor under covers, check that clips are securely placed in body panel holes.
