Exploded View

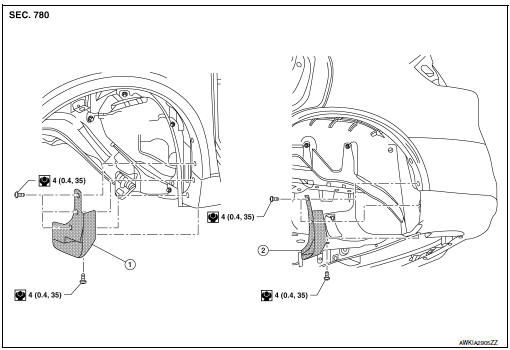

Exploded View

Front mud guard
Rear mud guard

Removal and Installation

FRONT MUD GUARD

Removal

Remove front mud guard screws and remove front mud guard.

Installation

Installation is in the reverse order of removal.

REAR MUD GUARD

Removal

Remove rear mud guard screws and remove rear mud guard.

Installation

Installation is in the reverse order of removal.

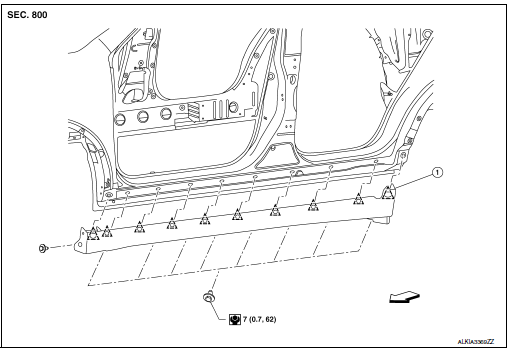

Exploded View - Center Mudguard

Exploded View - Center Mudguard

Center mudguard

Clip
Front

Removal and Installation - Center Mudguard

REMOVAL

Partially remove over fender moldings. Refer to EXT-30, "FRONT OVER FENDER : Exploded View".

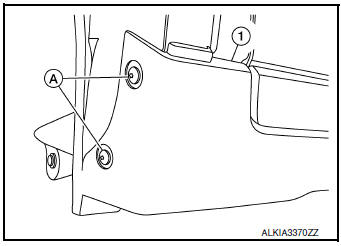

Remove screws (A) from center mudguard (1).

Removal

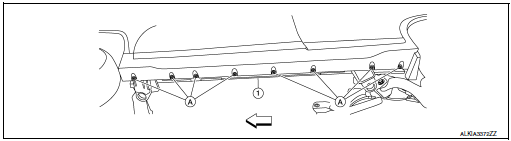

Remove center mudguard center mudguard bolts (A) from center mudguard (1).
: Front

Removal

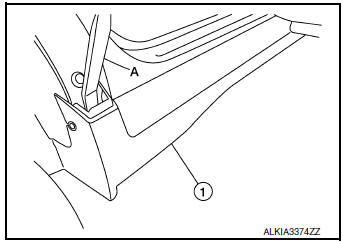

Release center mudguard clips with a suitable tool (A) and remove the center mudguard (1).
: Clip

CAUTION: Release clips slowly and carefully.

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Visually check the clips for deformation and damage during installation. Replace with new ones if necessary.
When installing center mudguard, check that clips are securely placed in body panel holes.

Over fender

FRONT OVER FENDER FRONT OVER FENDER : Exploded View Front fender protector Front fender Front over fender molding Clip FRONT OVER FENDER : Removal and Installation REM ...

Under cover

Exploded View Floor under cover (RH) Engine under cover Floor under cover (LH) ENGINE UNDER COVER ENGINE UNDER COVER : Removal and Installation REMOVAL Remove engine under ...
