Nissan Rogue Service Manual: Unit disassembly and assembly

CENTER CONSOLE ASSEMBLY

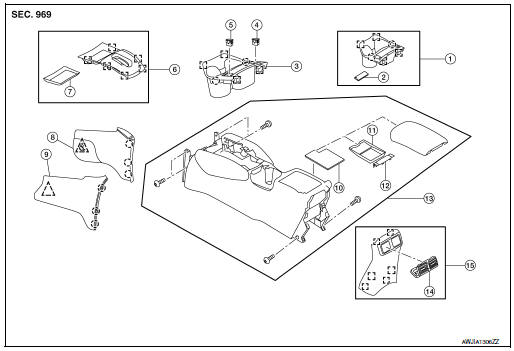

Exploded View

1. Center console cup holder (without heated seats)
2.  Coin tray insert
3.  Center console cup holder (with heated seats)
4.  Front heated seat switch (RH)
5. Front heated seat switch (LH)
6. Shift selector finisher
7.  Shift selector finisher mat
8. Center console side finisher (RH)
9. Center console side finisher (LH)
10.  Center console bin mat
11.  Center console tray
12.  Center console rear brace finisher
13.  Center console assembly
14.  Rear center ventilator grille
15.  Center console rear finisher

Metal clip
Clip
Pawl

Disassembly and Assembly

DISASSEMBLY

1.  Remove center console assembly. Refer to IP-18, "Removal and Installation".
2.  Remove the center console bin mat. Refer to IP-25, "Exploded View".

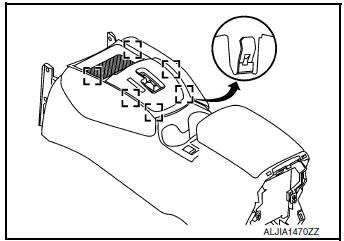

3.  Release clips using a suitable tool and remove shift selector finisher.

   : Metal clip

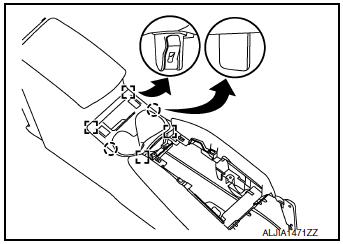

4. Release clips and pawls using a suitable tool and remove center console cup holder.

: Metal clip
: Pawl

5. Release pawls and remove center console rear brace finisher. Refer to IP-25, "Exploded View".
6.  Remove screws and center console tray. Refer to IP-25, "Exploded View".

ASSEMBLY

Assembly is in the reverse order of disassembly.
