Nissan Rogue Service Manual: Vacuum lines

Nissan Rogue Service Manual / Brakes / Brake System / Removal and installation / Vacuum lines

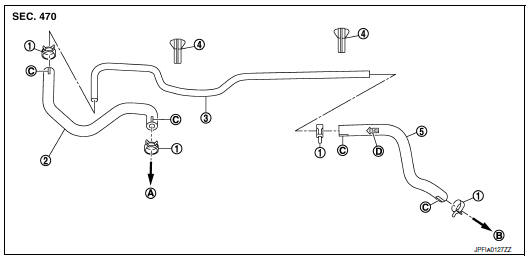

Exploded View

Exploded View

Clamp
Vacuum hose
Vacuum tube
Clip
Vacuum hose

To intake manifold
To brake booster
Paint mark
Stamp indicating engine direction

Removal and Installation

REMOVAL

Remove the cowl top. Refer to EXT-25, "Removal and Installation".
Remove the air duct assembly to the electric throttle control actuator. Refer to EM-24, "Exploded View".
Disconnect the vacuum hose from the engine intake manifold.
Disconnect the vacuum hose from the brake booster.
Disconnect the vacuum hose from the clip.
Remove the vacuum hoses.

INSPECTION AFTER REMOVAL

Visual Inspection

Check for correct installation, damage and deterioration of the vacuum hoses and pipe.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

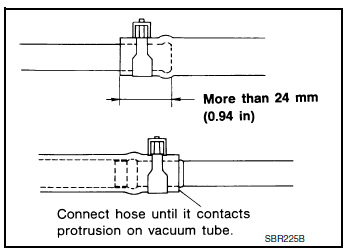

Insert the vacuum pipe into the vacuum hose at least 24 mm (0.94 in) as shown.
Do not use lubricating oil during installation.
