Nissan Rogue Service Manual: Vehicle information
Identification information
Model Variation

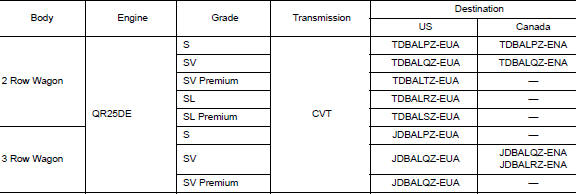

FWD Model

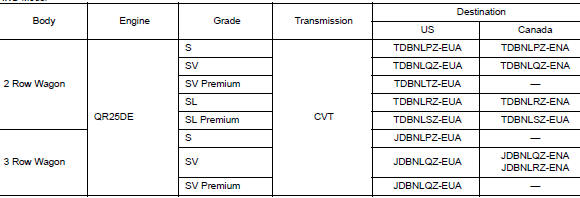

AWD Model

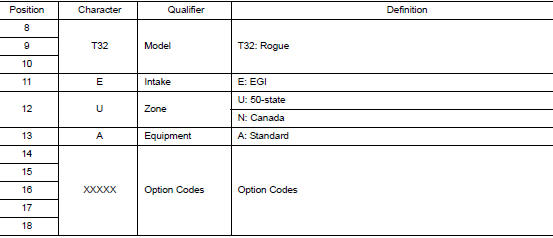

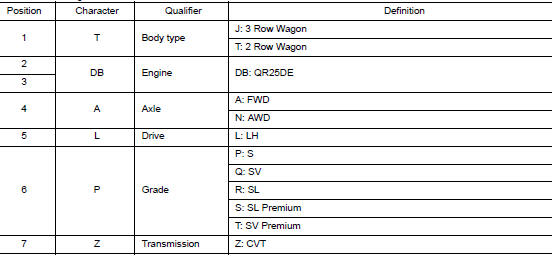

Prefix and Suffix Designations

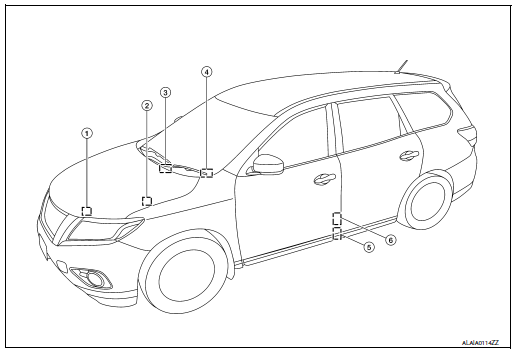

Identification Number
- Air conditioner specification label
- Emission control information label
- Vehicle identification number chassis number (center of bulkhead)
- Vehicle Identification Number (VIN) plate
- F.M.V.S.S./C.M.V.S.S. certification label
- Tire and loading information label

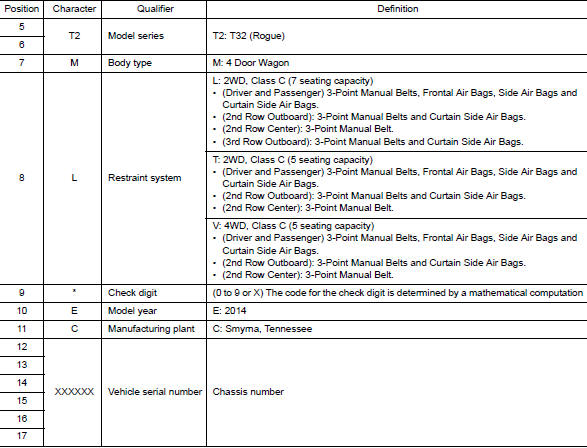

Vehicle Identification Number Arrangement

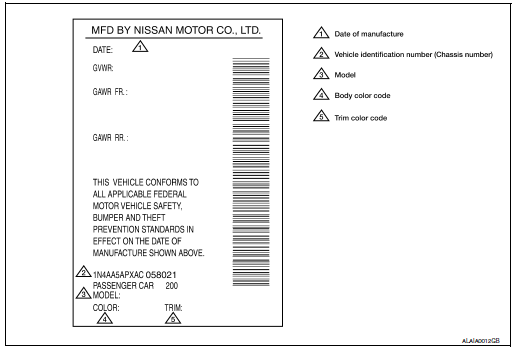

Identification Plate

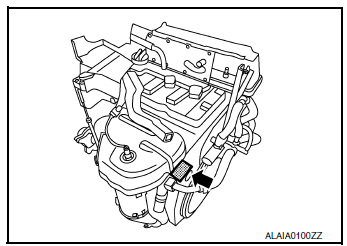

Engine Serial Number
QR25DE
Vehicle front

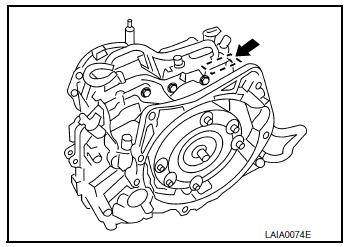

CVT Number

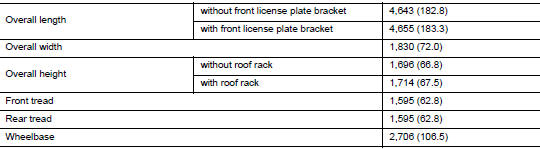

Dimensions

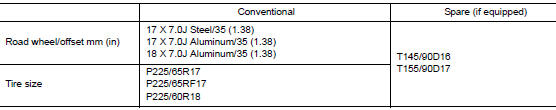

Wheels & Tires
Vehicle recovery (freeing a stuck vehicle)
FRONT
Securely install the vehicle recovery hook stored with jacking tools.
Check that the hook is properly secured in the stored place after use.
WARNING:
Stand clear of a stuck vehicl ...
Basic inspection
SERVICE INFORMATION FOR ELECTRICAL INCIDENT
Work flow
STEP
DESCRIPTION
STEP 1
Get detailed information about the conditions and the
environment when the incident occurred ...
