Nissan Rogue Service Manual: Washer switch
Description
- Washer switch is integrated with the combination switch.

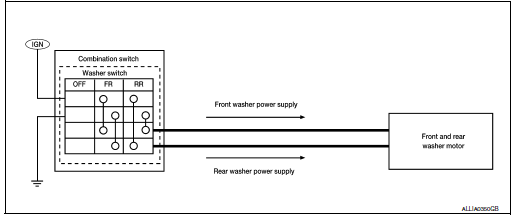

- Combination switch (wiper and washer switch) switches polarity between front washer operating and rear washer operating to supply power and ground to the front and rear washer motor.
Component Inspection
1. CHECK FRONT WASHER SWITCH
- Turn the ignition switch OFF.
- Disconnect combination switch (wiper and washer switch).

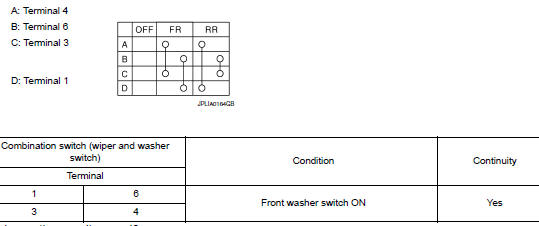

- Check continuity between the combination switch (wiper and washer switch) terminals.
Is the inspection result normal? YES >> GO TO 2.
NO >> Replace combination switch (wiper and washer switch). Refer to BCS-76, "Removal and Installation" (with Intelligent Key system) or BCS-136, "Removal and Installation" (without Intelligent Key system).
2. CHECK REAR WASHER SWITCH

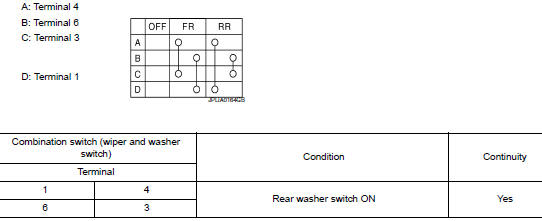

- Check continuity between the combination switch (wiper and washer switch) terminals.
Is the inspection result normal? YES >> Wiper and washer switch is normal.
NO >> Replace combination switch (wiper and washer switch). Refer to BCS-76, "Removal and Installation" (with Intelligent Key system) or BCS-136, "Removal and Installation" (without Intelligent Key system).
Washer motor circuit
Diagnosis Procedure
Regarding Wiring Diagram information, refer to WW-22, "Wiring Diagram".
1. CHECK FRONT AND REAR WASHER MOTOR FUSE
Turn the ignition switch OFF.
Check ...
Rear wiper motor circuit
Component Function Check
1. CHECK REAR WIPER ON OPERATION
CONSULT ACTIVE TEST
Select "RR WIPER" of BCM active test item.
While operating the test item, check rear wiper ...
