Nissan Rogue Service Manual: Electrical units location
Electrical Units Location

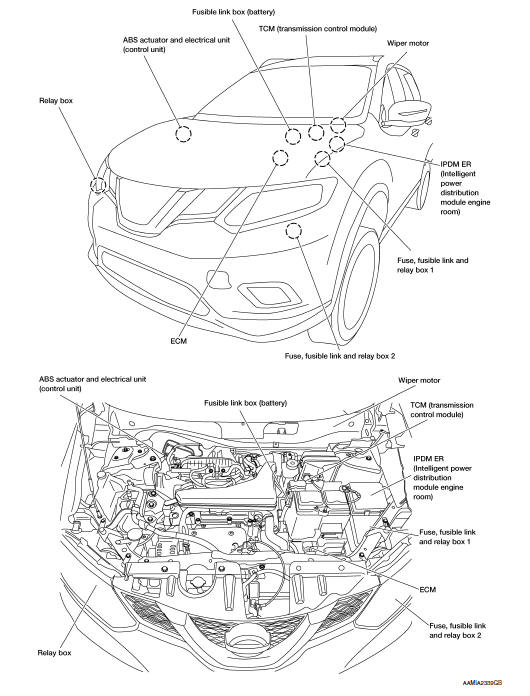

ENGINE COMPARTMENT

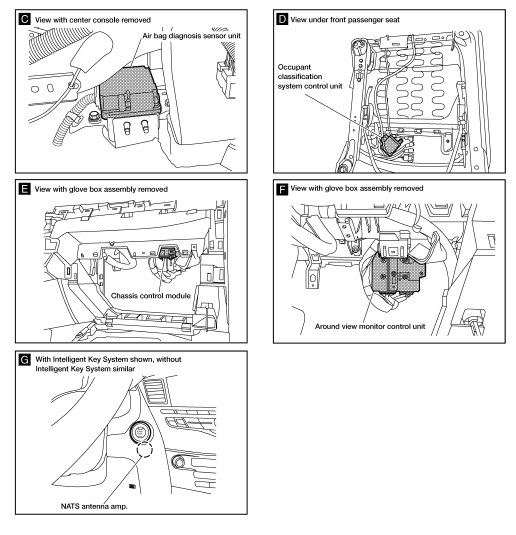

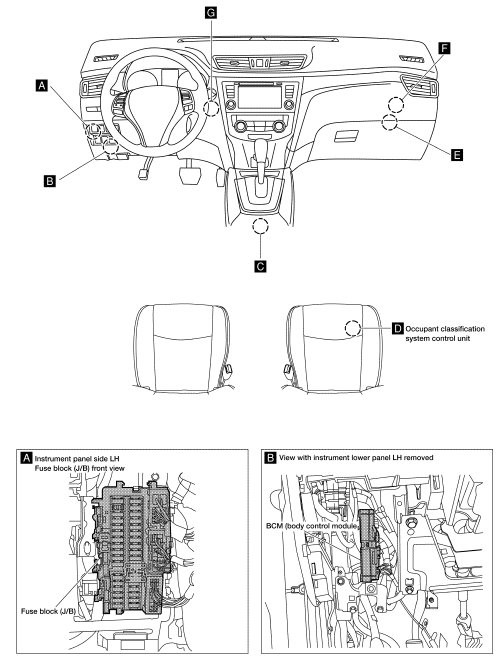

PASSENGER COMPARTMENT
Harness
Harness Layout
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
Main Harness and Main Sub Harness
Engine Ro ...
Harness connector
Description
HARNESS CONNECTOR (TAB-LOCKING TYPE)
The tab-locking type connectors help prevent accidental looseness
or disconnection.
The tab-locking type connectors are disconnec ...
