Nissan Rogue Service Manual: Harness
Harness Layout
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
- Main Harness and Main Sub Harness

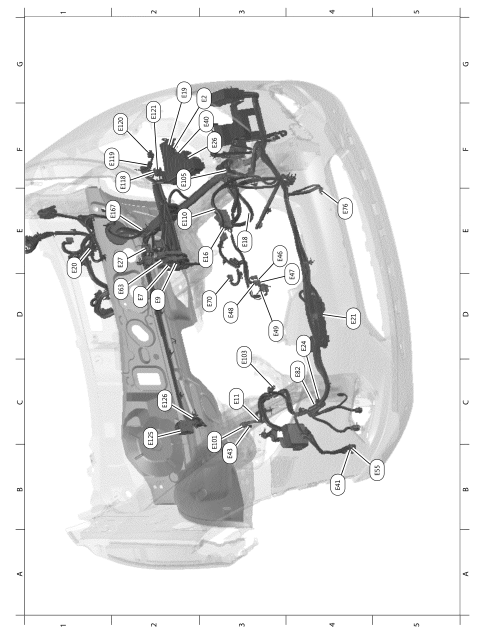

- Engine Room Harness
- Engine Room Harness (Passenger Compartment)
- Front End Module Harness
- Engine Control Harness
- Body Harness
- Body No. 2 Harness
- Room Lamp Harness

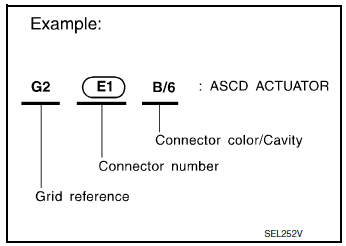

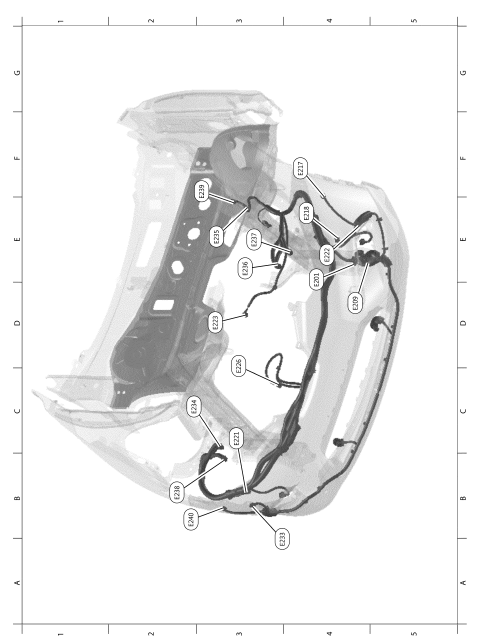

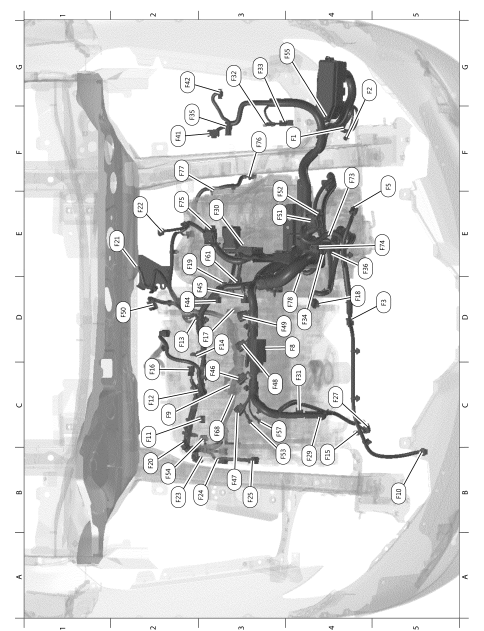

To use the grid reference

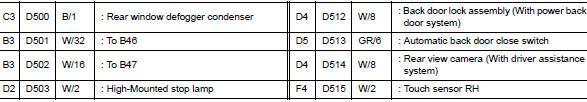

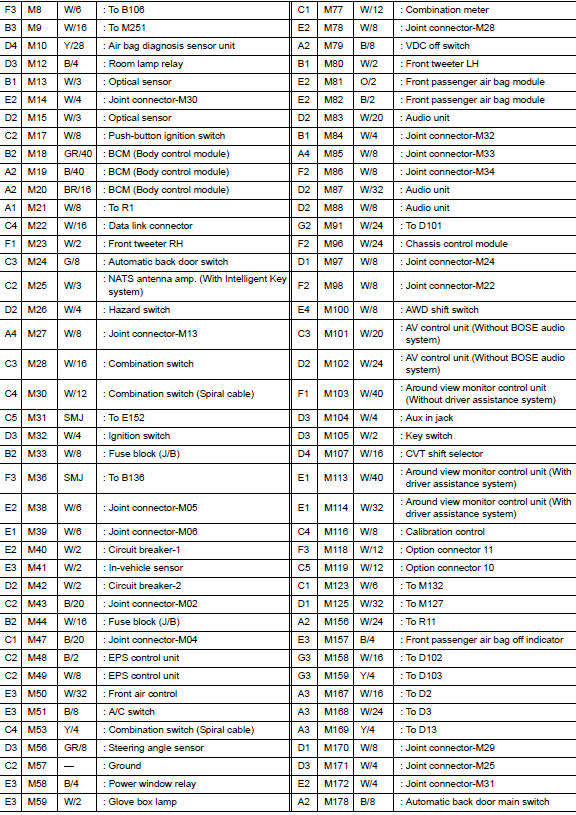

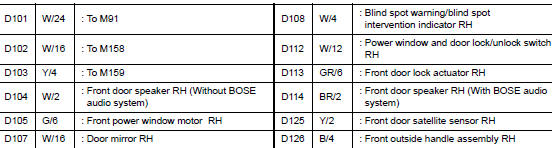

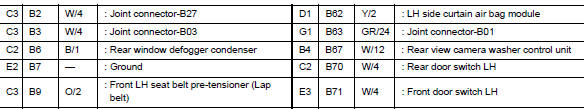

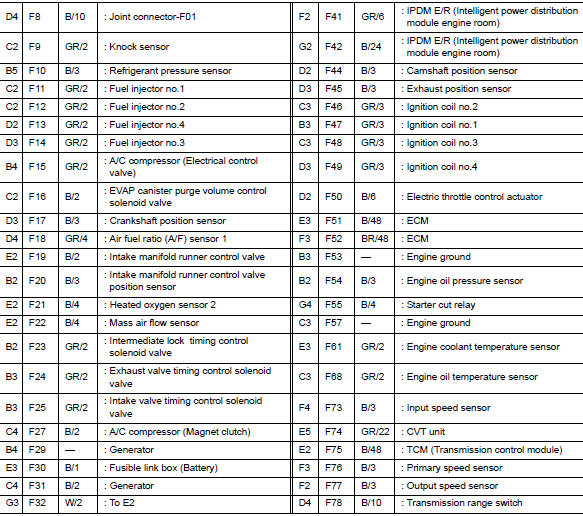

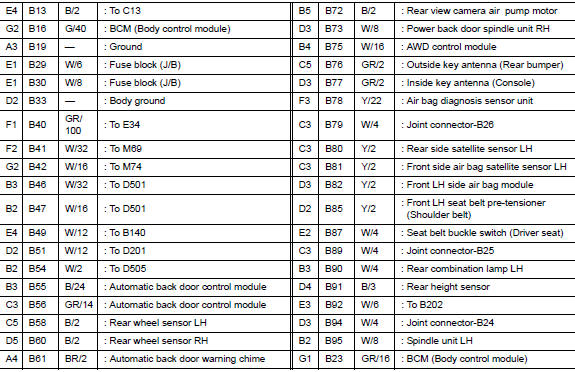

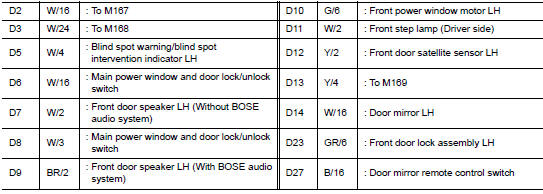

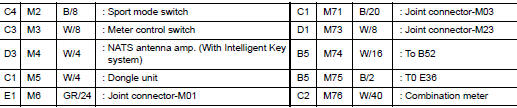

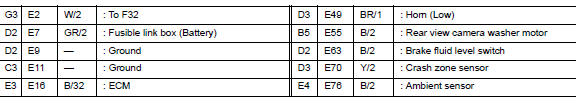

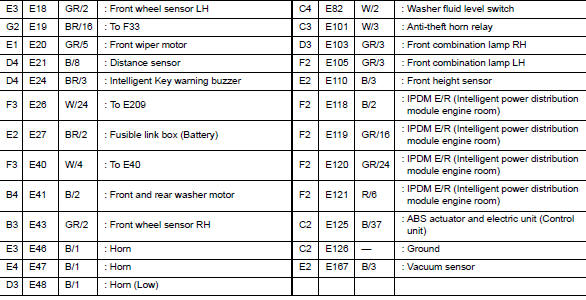

- Find the desired connector number on the connector list.
- Find the grid reference.
- On the drawing, find the crossing of the grid reference letter column and number row.
- Find the connector number in the crossing zone.
- Follow the line (if used) to the connector.

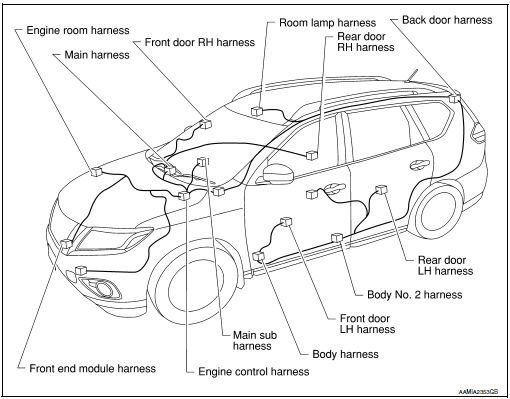

OUTLINE

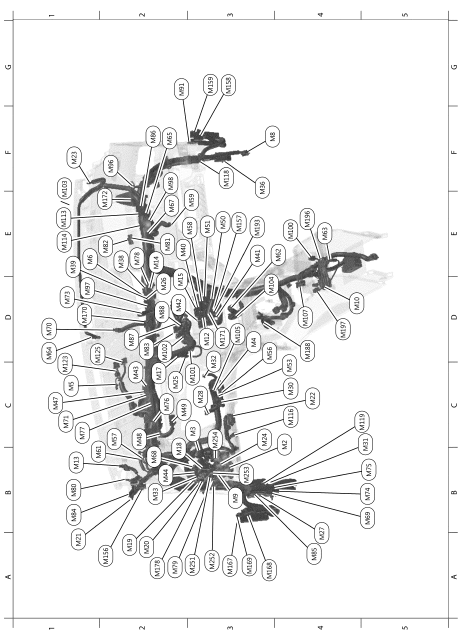

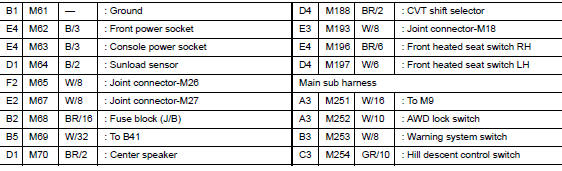

MAIN HARNESS

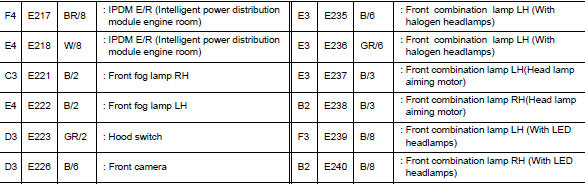

ENGINE ROOM HARNESS
ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)
FRONT END MODULE HARNESS
ENGINE CONTROL HARNESS

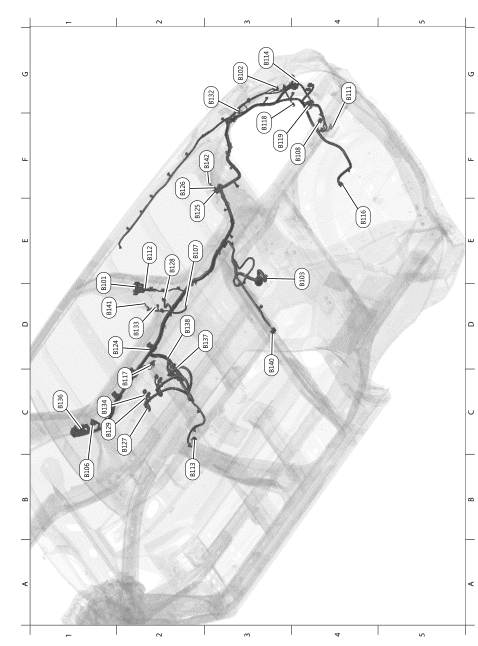

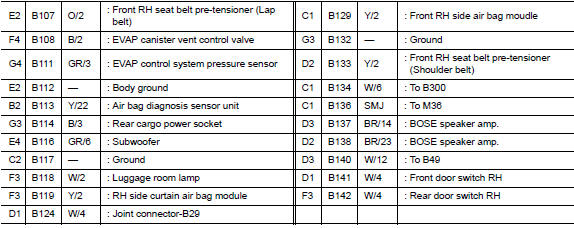

BODY HARNESS
BODY NO. 2 HARNESS

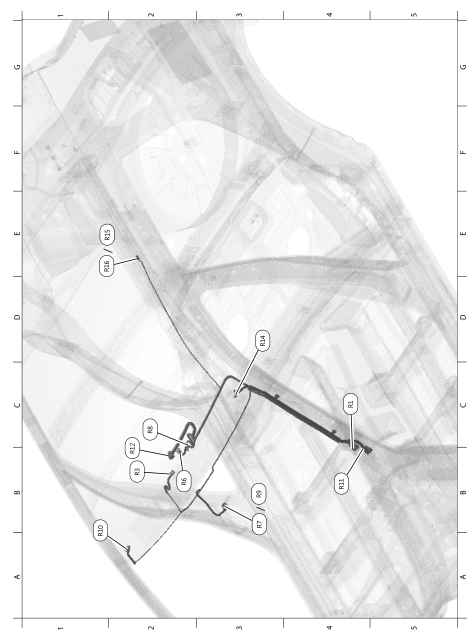

ROOM LAMP HARNESS

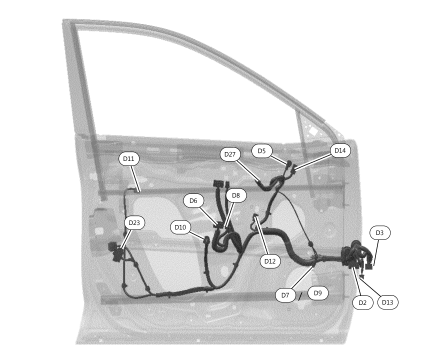

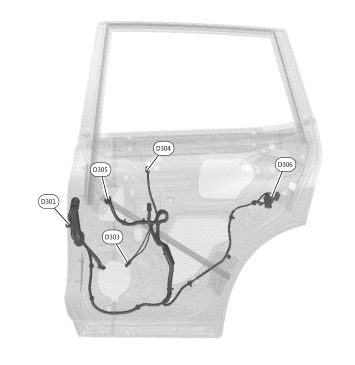

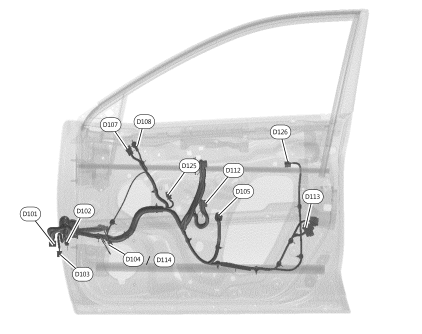

FRONT DOOR LH HARNESS
FRONT DOOR RH HARNESS

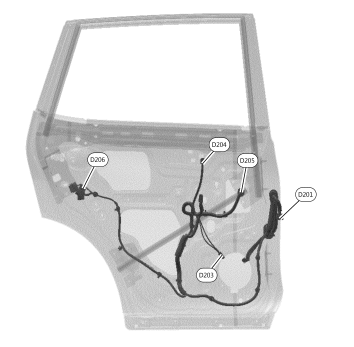

REAR DOOR LH HARNESS
REAR DOOR RH HARNESS

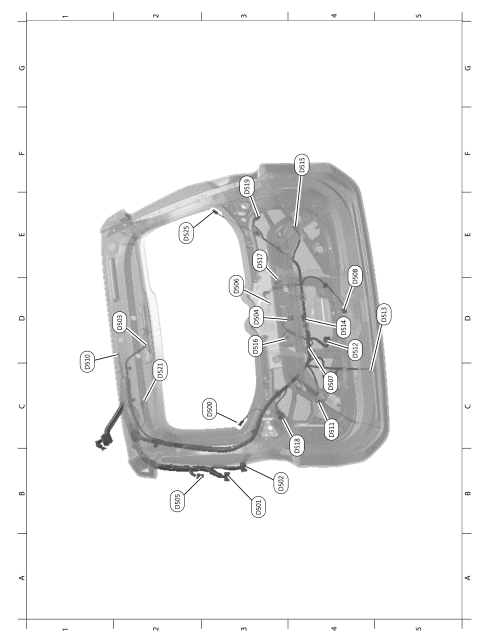

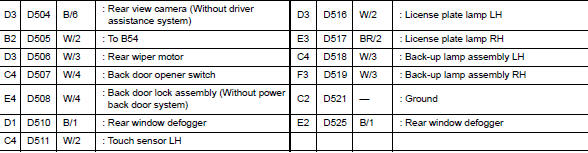

BACK DOOR HARNESS
Ground
Ground Distribution
MAIN HARNESS

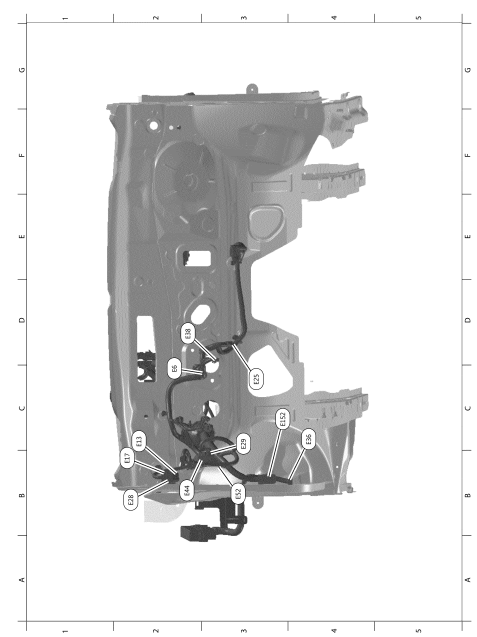

ENGINE ROOM HARNESS
ENGINE CONTROL HARNESS
BODY HARNESS
BODY NO. 2 HARNESS
...
Electrical units location
Electrical Units Location
ENGINE COMPARTMENT
PASSENGER COMPARTMENT
...
