Nissan Rogue Service Manual: Back door window glass

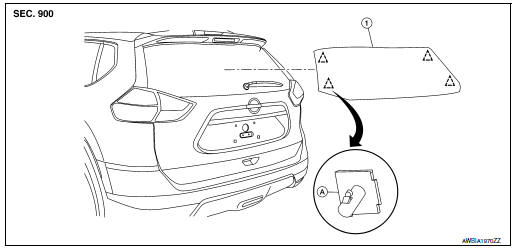

Exploded View

1. Back door window glass
2. Clip

Clip

Removal and Installation

REMOVAL

1.  Remove back door finisher. Refer to INT-38, "Removal and Installation".
2.  Remove back door lock. Refer to DLK-263, "DOOR LOCK : Removal and Installation" (for intelligent key) or DLK-380, "DOOR LOCK : Removal and Installation" (for others).
3.  Remove the rear wiper arm and motor. Refer to WW-71, "Removal and Installation".
4.  Disconnect harness connectors from back door window defogger.

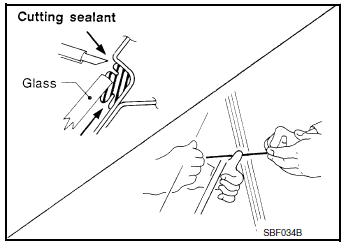

5.  Remove back door window glass using piano wire or power cutting tool and an inflatable pump bag.

WARNING: When cutting back door window glass from vehicle, always wear safety glasses and heavy gloves to prevent glass splinters from entering your eyes or cutting your hands.

CAUTION:

•  Be careful not to scratch glass when removing.
•  Do not set or stand glass on its edge. Small chips may develop into cracks.
•  Apply protective tape around back door window glass to protect painted surface from damage.

NOTE: Mark body and glass with matching marks if back door window glass is to be reused.

INSTALLATION

Installation is in the reverse order of removal.

• Use genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions furnished with it.
•  Adhesive shall be continuously applied to assure watertightness. Glass installation shall be finished within five minutes after applying adhesive.
•  While urethane adhesive is curing, open door window. This will prevent glass from being forced out by passenger compartment air pressure when door is closed.
•  Start and finish urethane adhesive application at the bottom to assure watertightness.
• Inform customer that vehicle should remain stationary until urethane adhesive has completely cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

•  Keep heat and open flames away as primers and adhesive are flammable.
•  Materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid contact with the skin and eyes.
•  Use in an open, well ventilated location. Avoid breathing vapors. They can be harmful if inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.
•  Driving vehicle before urethane adhesive has completely cured may affect performance of the windshield in case of an accident.

CAUTION:

•  Do not use adhesive which is past its usable term. Shelf life of this product is limited to six months after date of manufacture. Carefully adhere to expiration or manufacture date printed on box.
•  Keep primers and adhesive in cool, dry place. Ideally, they should be stored in refrigerator.
•  Do not leave primers or adhesive cartridge unattended with their caps open or off.
•  Vehicle should not be driven for at least 24 hours or until urethane adhesive has completely cured.

  Curing time varies depending on temperature and humidity. Curing time will increase under lower temperatures and lower humidity.

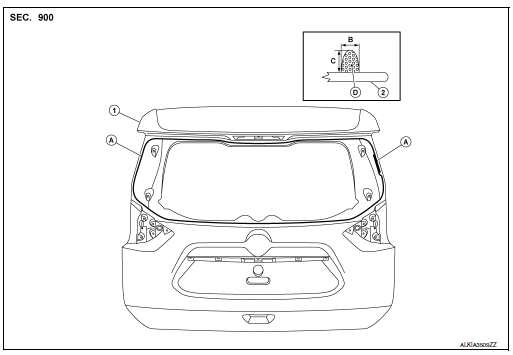

1. Back door
2. Back door window glass
1.  Primer and adhesive area
2.  7.0 mm (0.28 in)
3. 12.0 mm (0.47 in)
4. Adhesive

REPAIRING WATER LEAKS FOR BACK DOOR GLASS

•  Leaks can be repaired without removing and reinstalling glass.
•  Determine extent of leak, if water leaks between urethane adhesive material and body or glass.
• This can be done by applying water to glass area while pushing glass outward.
•  Apply primer (if necessary) and then urethane adhesive to leak point to stop leak.

Inspection

REPAIRING WATER LEAKAGE FOR BACK DOOR WINDOW GLASS

Leakage can be repaired without removing the glass.

Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.

This can be done by applying water to the back door window glass area while pushing glass outward.

Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.
