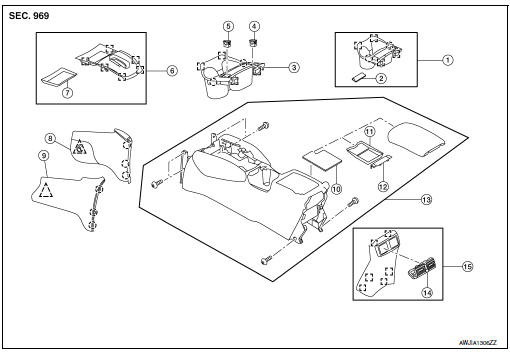

Exploded View

Exploded View

Center console cup holder (without heated seats)
Coin tray insert
Center console cup holder (with heated seats)
Front heated seat switch (RH)
Front heated seat switch (LH)
Shift selector finisher
Shift selector finisher mat
Center console side finisher (RH)
Center console side finisher (LH)
Center console tray
Center console bin mat
Center console rear brace finisher
Center console assembly
Rear center ventilator grille
Center console rear finisher

Metal clip
Clip
Pawl

Removal and Installation

REMOVAL

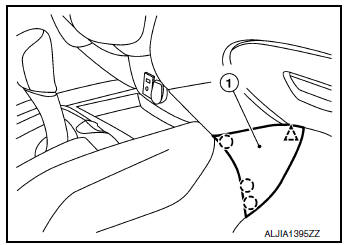

Release clips and pawls using a suitable tool and remove center console side finisher (1) (LH/RH).

: Pawl
: Clip

NOTE: RH side shown; LH similar.

Removal

Remove shift selector knob. Refer to TM-194, "Exploded View".
Remove cluster lid C. Refer to IP-21, "Removal and Installation".

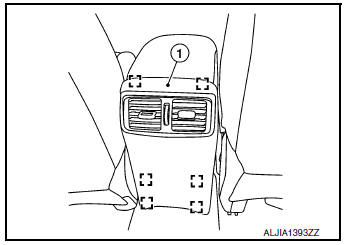

Release clips using a suitable tool and remove center console rear finisher (1).
: Metal clip

Removal

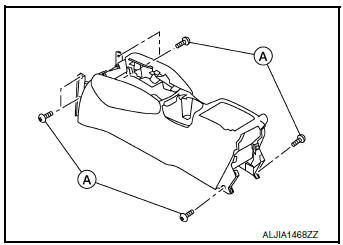

Remove center console screws (A).

Removal

Disconnect the harness connectors and remove center console.

INSTALLATION

Installation is in the reverse order of removal.
