Nissan Rogue Service Manual: Cluster lid A
Removal and Installation
REMOVAL
- Remove instrument lower panel LH. Refer to IP-22, "Removal and Installation".
- Remove instrument finisher A. Refer to IP-15, "INSTRUMENT FINISHER A : Removal and Installation".
- Remove instrument finisher B. Refer to IP-16, "INSTRUMENT FINISHER B : Removal and Installation".

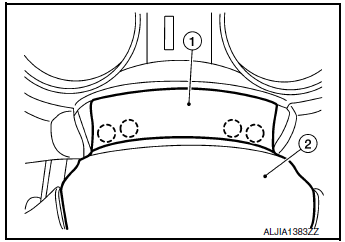

- Release gap hider (1) pawls from the steering column upper cover (2).
: Pawl

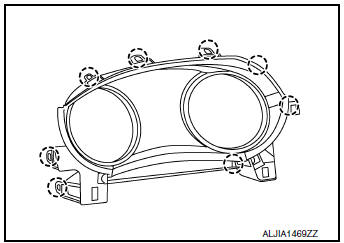

- Release pawls using a suitable tool and remove cluster lid A.: Pawl
INSTALLATION
Installation is in the reverse order of removal.
