Nissan Rogue Service Manual: Rear door finisher

Nissan Rogue Service Manual / Body interior / Interior / Removal and installation / Rear door finisher

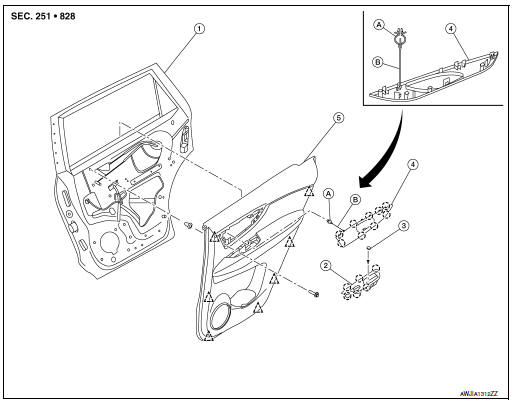

Exploded View

Exploded View

Rear door
Rear power window switch finisher
Rear door screw cover
Rear door inside handle finisher
Rear door finisher

Tether clip
Tether

Pawl Clip

Removal and Installation

REMOVAL

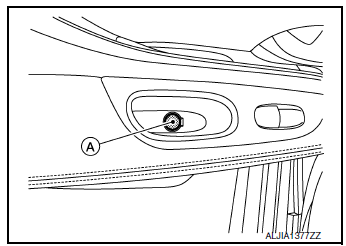

Remove screw cover (1).

Removal

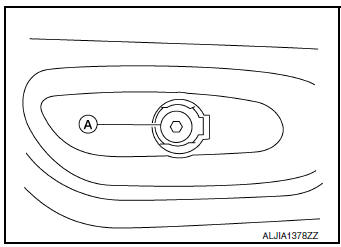

Remove screw (A).

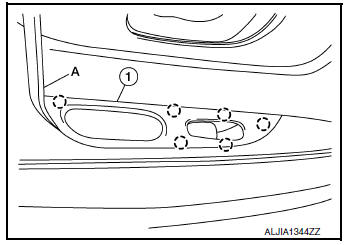

Release pawls using a suitable tool (A) and remove rear power window switch finisher (1).

: Pawl

Removal

Disconnect harness connector from rear power window switch finisher.

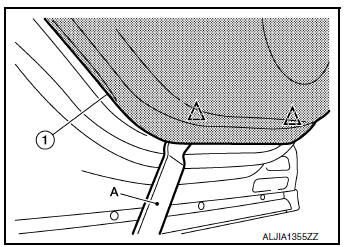

Release pawls using a suitable tool (A) and remove rear door inside handle finisher (1).

: Pawl

Removal

Release clip and remove tether from the front door panel.

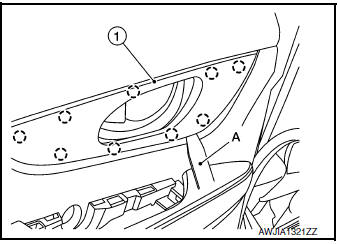

Release clips using a suitable tool (A) and remove rear door finisher (1).

: Clip

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Visually check the clips and pawls for deformation and damage during installation. Replace with new ones if necessary.
When installing rear door finisher, check that clips and pawls are securely placed in door panel holes.
