Nissan Rogue Service Manual: Cluster lid C

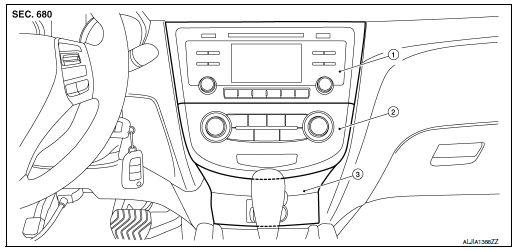

Exploded View
- Audio unit (AUDIO WITHOUT BOSE) / AV control unit (AUDIO WITH BOSE) (NAVIGATION WITH BOSE)
- A/C switch assembly (AUTOMATIC AIR CONDITIONING) / front air control (MANUAL AIR CONDITIONING)
- Cluster lid C
Removal and Installation
REMOVAL

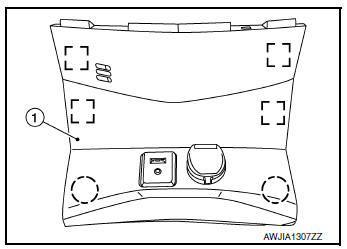

- Release cluster lid C (1) clips and pawls using a suitable tool.
: Metal clip
: Pawl
- Disconnect the in-vehicle sensor hose from the cluster lid C.
- Disconnect the harness connectors from cluster lid C and remove.
INSTALLATION
Installation is in the reverse order of removal.
