Nissan Rogue Service Manual: Component parts

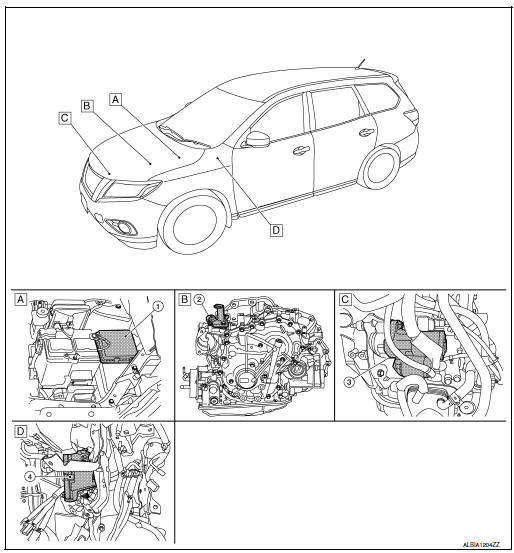

Component Parts Location
- Engine room (RH)
- View with transmission removed
- View with engine and transmission removed
- Behind instrument panel (LH)
| No. | Component part | Description |
| 1 | IPDM E/R | CPU inside IPDM E/R operates the starter relay when the ignition switch is in the start position. |
| 2 | Transmission range switch | Transmission range switch supplies power to the starter relay and starter control relay inside the IPDM E/R when the selector lever is shifted to the P (Park) or N (Neutral) position. |
| 3 | Starter motor | The starter motor plunger closes and the motor is supplied with battery power, which in turn cranks the engine, when the S terminals supplied with electric power. |
| 4 | BCM | BCM controls the starter relay inside IPDM E/R. |
System
System Description
The starter motor plunger closes and provides a closed circuit between the
battery and the starter motor. The
starter motor is grounded to the cylinder block. With power and gro ...
