Nissan Rogue Service Manual: System
System Description
The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.

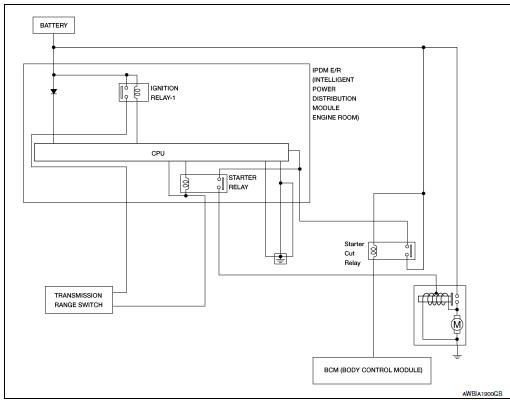

SYSTEM DIAGRAM
Component parts
Component Parts Location
Engine room (RH)
View with transmission removed
View with engine and transmission removed
Behind instrument panel (LH)
No.
Component part
Descr ...
Wiring diagram
STARTING SYSTEM
Wiring Diagram
...
