Nissan Rogue Service Manual: Component parts

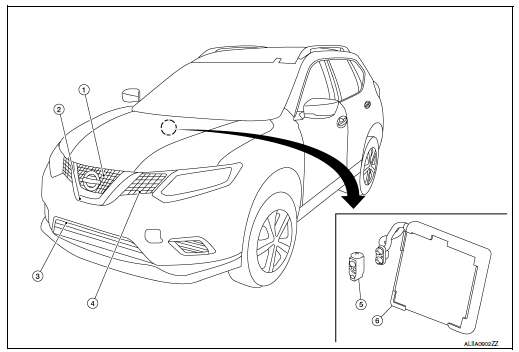

Component Parts Location
- Condenser
- Compressor
- Refrigerant pressure sensor
- Liquid tank
- Expansion valve
- Evaporator
Component Description
|
Component |
Description |
| Compressor | Intakes, compresses and discharges refrigerant to circulate refrigerant inside the refrigerant system. |
| Condenser | Cools refrigerant discharged from compressor and transforms it to liquid refrigerant. |
| Liquid tank | Eliminates foreign matter in refrigerant and stores temporarily liquid refrigerant. |
| Refrigerant pressure sensor | Refer to EC-482, "Component Function Check". |
| Expansion valve | Transforms high-pressure liquid refrigerant to mist form low-pressure liquid refrigerant. |
| Evaporator | The mist form liquid refrigerant transforms to gas by evaporation by the air conveyed from blower motor. The air is cooled by the heat by evaporation. |
System
System Diagram
Compressor
Pressure relief valve
Liquid tank
Refrigerant pressure sensor
Condenser
Expansion valve
Evaporator
Blower motor
High-pressure gas
&n ...
