HOW TO USE CONNECTOR INFORMATION

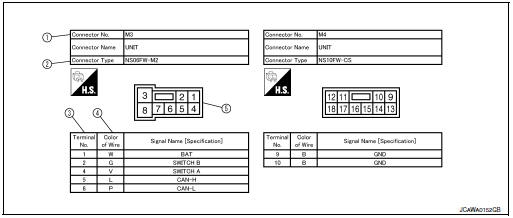

Connector Information

Description

Number	Item	Description
1	Connector number	Alphabetic characters show to which harness the connector is placed. Numeric characters show the identification number of connectors.
2	Connector type	This means the connector number.
3	Terminal number	This means the terminal number of a connector.
4	Wire color	This shows a code for the color of the wire.
		B = Black W = White R = Red G = Green L = Blue Y = Yellow LG = Light Green BG = Beige BR = Brown LA = Lavender OR or O = Orange P = Pink PU or V (Violet) = Purple GY or GR = Gray SB = Sky Blue CH = Dark Brown DG = Dark Green
		When the wire color is striped, the base color is given first, followed by the stripe color as shown below: Example: L/W = Blue with White Stripe
5	Connector	This means the connector information. This unit-side is described by the connector symbols.

Sample/Wiring Diagram -Example-

Each section includes wiring diagrams. Description Number Item Description 1 Power supply This means the power supply of fusible link or fuse. ...

Abbreviations

Abbreviation List The following ABBREVIATIONS are used: ...
