How to use this manual

Description

This volume explains “Removal, Disassembly, Installation, Inspection and Adjustment” and “Trouble Diagnoses”.

Terms

• The captions WARNING and CAUTION warn you of steps that must be followed to prevent personal injury and/or damage to some part of the vehicle.

  WARNING indicates the possibility of personal injury if instructions are not followed.

  CAUTION indicates the possibility of component damage if instructions are not followed.

  BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information.

  Standard value: Tolerance at inspection and adjustment.

  Limit value: The maximum or minimum limit value that should not be exceeded at inspection and adjustment.

Units

The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit), and alternatively expressed in the metric system and in the yard/pound system.

Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about the standard tightening torque.

“Example”

Range

Outer Socket Lock Nut : 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb)

Standard

Drive Shaft Installation Bolt : 44.3 N·m (4.5 kg-m, 33 ft-lb)

Contents

• QUICK REFERENCE INDEX, a black tab (e.g. ) is provided on the first page. You can quickly find the first page of each section by matching it to the section's black tab.
•  THE CONTENTS are listed on the first page of each section.
•  THE TITLE is indicated on the upper portion of each page and shows the part or system.
•  THE PAGE NUMBER of each section consists of two or three letters which designate the particular section and a number (e.g. “BR-5”).
•  THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of work and hidden or tricky steps which are not shown in the previous large illustrations.

  Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle or transmission, etc. are presented in a step-by-step format where necessary.

Relation between illustrations and descriptions

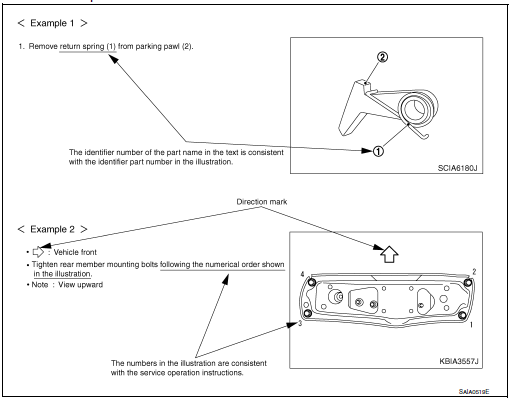

The following sample explains the relationship between the part description in an illustration, the part name in the text and the service procedures.

Components

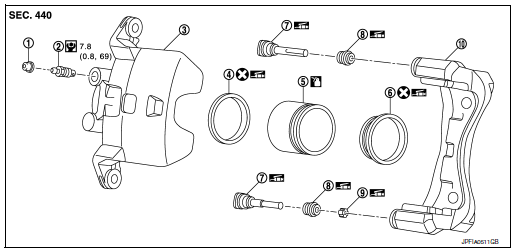

• THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubrication points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to perform repairs.

  The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG.

  Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.

1. Cap
2.  Bleeder valve
3.  Cylinder body
4.  Piston seal
5.  Piston
6.  Piston boot
7. Sliding pin
8.  Sliding pin boot
9.  Bushing
10.  Torque member

Apply rubber grease.
Apply brake fluid.
N·m (kg-m, in-lb)
Always replace after every disassembly

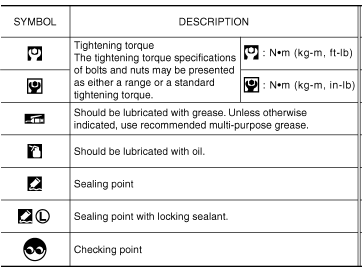

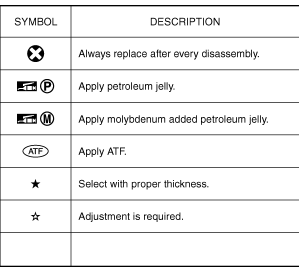

SYMBOLS

• How to follow trouble diagnoses
• How to read wiring diagrams
• Abbreviations
• Tightening torque of standard bolts
• Recommended chemical products and sealants
