Nissan Rogue Service Manual: Diagnosis system (BCM) (with intelligent key system)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)
APPLICATION ITEM

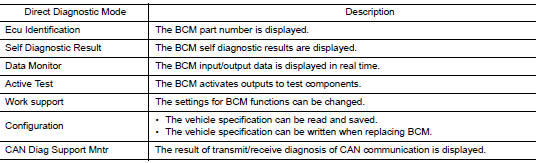

CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION

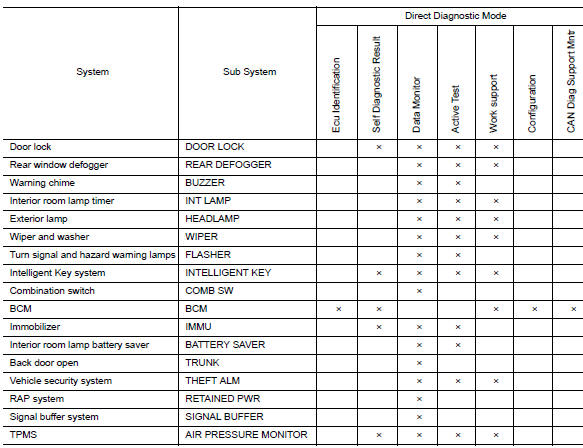

BCM can perform the following functions.
BUZZER
BUZZER : CONSULT Function (BCM - BUZZER)

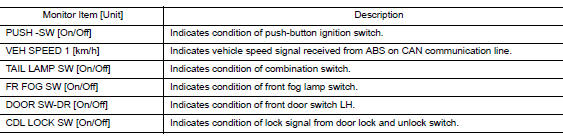

DATA MONITOR
ACTIVE TEST
