Nissan Rogue Service Manual: Door mirror

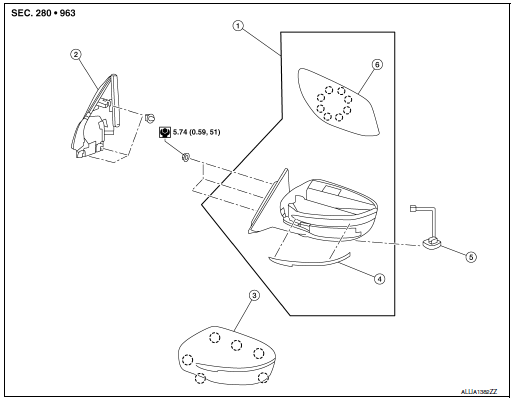

Exploded View

1. Door mirror
2. Door mirror corner finisher
3. Door mirror rear finisher
4.  Side turn signal lamp
5. Side camera (if equipped)
6.  Door mirror glass

Pawl

Removal and Installation

REMOVAL

1.  Remove front door finisher. Refer to INT-15, "Removal and Installation".
2.  Release door mirror corner finisher clips using a suitable tool.
3.  Disconnect the harness connector from the blind spot warning indicator (if equipped), then remove the door mirror corner finisher.
4.  Disconnect the harness connector from the door mirror.
5. Remove door mirror nuts and door mirror.

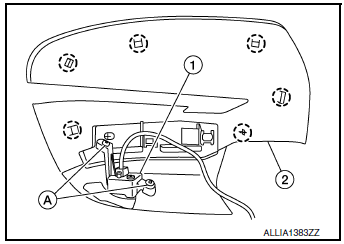

6. Remove screws (A) and side camera (1) (if equipped) (if necessary) from door mirror rear finisher (2).

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Perform camera image calibration (if equipped with around view camera). Refer to AV-136, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure".
