Nissan Rogue Service Manual: DTC/circuit diagnosis
DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH/ CHANGEOVER SWITCH)
Component Inspection
1.CHECK MIRROR SWITCH & CHANGEOVER SWITCH
- Turn ignition switch OFF.
- Disconnect door mirror remote control switch connector.

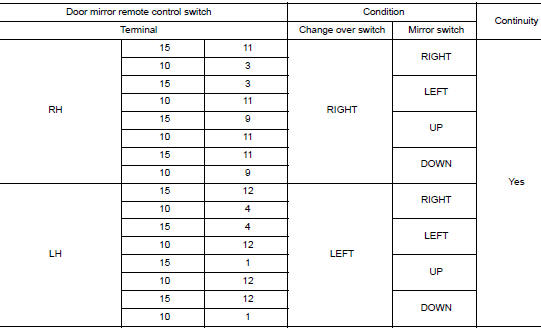

- Check door mirror remote control switch.
Is the inspection result normal? YES >> Inspection End.
NO >> Replace door mirror remote control switch. Refer to MIR-27, "Removal and Installation".
