Nissan Rogue Owners Manual: Exterior and interior lights
| Item | Wattage (W) | Bulb No. | |
| Headlight assembly* | |||
| High | 65 | H9 | |
| Low | 55 | H11 | |
| Park | 5 | W5W | |
| Turn | 28/8 | 7444 | |
| Sidemarker | 5 | WY5W | |
| Front fog lights (if so equipped) | 55 | H11 | |
| Daytime running lights | — | — | |
| Map light (if so equipped)* | — | — | |
| Personal lights | 8 | P1Y | |
| Courtesy light* | — | — | |
| Vanity mirror light | 1.8 | AL1X | |
| Cargo light | — | — | |
| High-mounted stop light* | — | — | |
| Rear combination light | |||
| Tail/Stop* | 5/21 | 7443 | |
| Turn | 21 | WY21W | |
| Rear sidemarker | 5 | W5W | |
| Backup (reversing)* | 16 | W16W | |
| License plate light* | 5 | W5W | |
* See a NISSAN dealer for replacement. Always check with the Parts Department at a NISSAN dealer for the latest parts information.

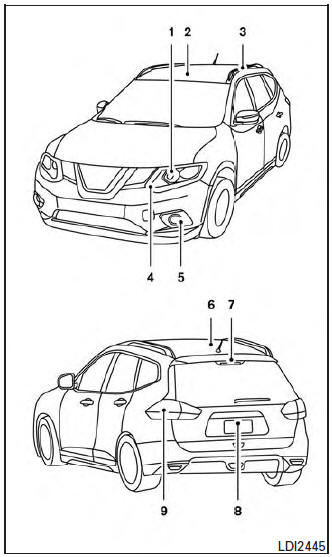

- Headlight assembly
- Map light (if so equipped)
- Personal light
- Daytime running light
- Fog light (if so equipped)
- Cargo light
- Courtesy light
- High mounted stoplight
- License plate light
- Rear combination light
Replacement procedures

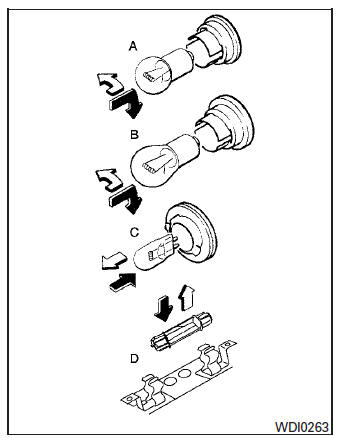

All other lights are either type A, B, C or D. When replacing a bulb, first remove the lens, lamp and/or cover.
Indicates bulb removal
Indicates bulb installation

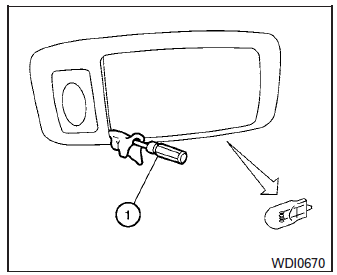

Personal lights (if so equipped)
Use a cloth and a suitable tool 1 to protect the housing.

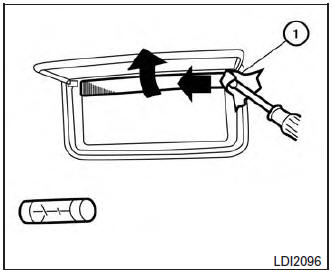

Vanity mirror
Use a cloth 1 and suitable tool to protect the housing.

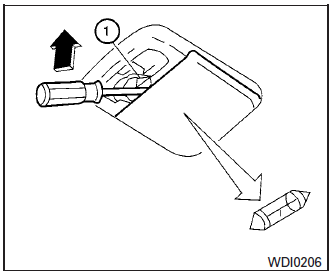

Cargo light
Use a cloth 1 to protect the housing.
