Nissan Rogue Service Manual: Front regulator

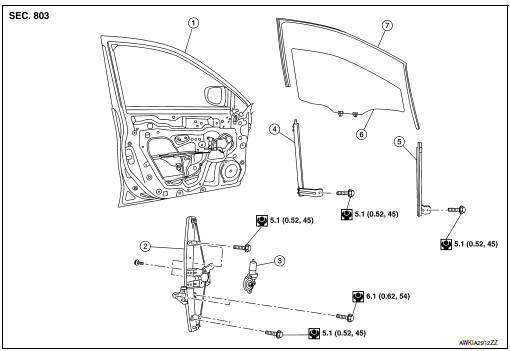

Exploded View

1. Front door panel
2. Front door regulator
3. Front door power window motor
4. Front door glass run rear
5. Front door glass run front
6. Front door glass
7. Front door glass rubber run

Removal and Installation

REMOVAL

1.  Remove the front door finisher. Refer to INT-15, "Removal and Installation".

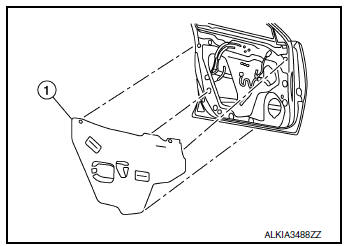

2.  Partially remove vapor barrier.

3. Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window door lock/unlock switch RH (RH door).
4.  Operate the power window and door lock/unlock switch (LH door) or front door power window motor and door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to front door glass bolts can be seen.

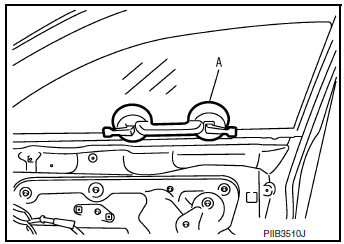

5. Raise the front door glass and hold in place using a suitable tool (A).

6. Disconnect the harness connector from the front power window motor.

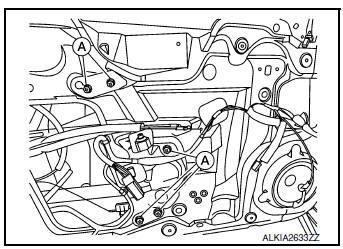

7. Remove the bolts (A) and remove the front door glass regulator.

INSPECTION AFTER REMOVAL

Check the front door glass regulator for the following items:

• Wire wear
•  Front door glass regulator deformation
•  Grease condition for each sliding part

If a malfunction is detected, replace or grease it.

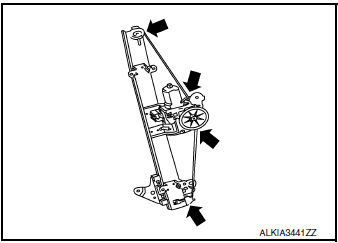

The arrows in the figure show the application points of the suitable multi-purpose grease, if needed.

Inspection and Adjustment

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

•  When the main power window and door lock/unlock switch or front power window and door lock/ unlock switch RH is removed it is necessary to perform the initialization procedure. Refer to PWC- 27, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special Repair Requirement".
•  Tighten front door regulator bolts to specification. Refer to GW-16, "Exploded View".

FITTING INSPECTION

• Check that the front door glass is fit securely into the glass run groove.
• Lower the front door glass slightly [approximately 10 to 20 mm (0.39 to 0.79) and check that the clearance to the run is parallel.If the clearance between the glass and sash is not parallel, loosen the front door glass regulator bolts, front door glass run channel bolts, and glass and run rail bolts to correct the glass position.
