Nissan Rogue Service Manual: Front wiper drive assembly

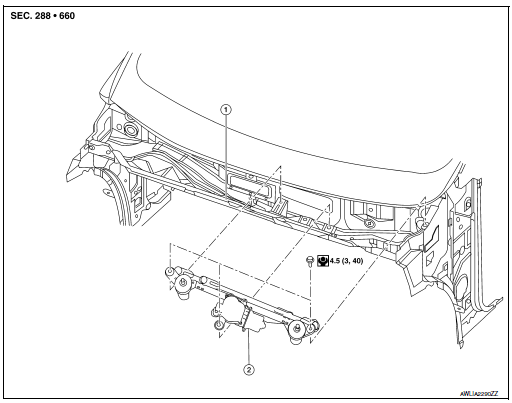

Exploded View
REMOVAL
- Cowl top
- Front wiper drive assembly
Removal and Installation
REMOVAL
- Remove cowl top cover. Refer to EXT-25, "Removal and Installation".
- Disconnect harness connector from front wiper motor.
- Remove bolts and front wiper drive assembly.
INSTALLATION
Installation is in the reverse order of removal.
Front wiper blade
Exploded View
Wiper blade (RH)
Wiper arm (RH)
Wiper arm cover
Front wiper drive assembly
Wiper arm (LH)
Wiper blade (LH)
Removal and Installation
REMOVAL
Move front ...
Front wiper motor
Removal and Installation
REMOVAL
Remove the front drive assembly. Refer to WW-66, "Removal and
Installation".
Remove the bolts (A) from the front wiper drive assembly ( ...
