Nissan Rogue Service Manual: Front wiper blade

Nissan Rogue Service Manual / Driver controls / Wiper & Washer / Removal and installation / Front wiper blade

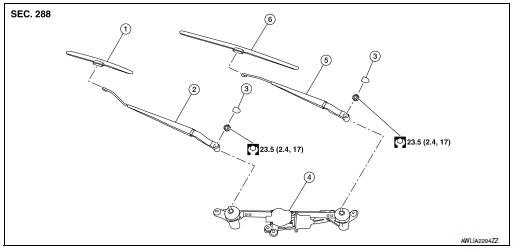

Exploded View

Exploded View

Wiper blade (RH)
Wiper arm (RH)
Wiper arm cover
Front wiper drive assembly
Wiper arm (LH)
Wiper blade (LH)

Removal and Installation

REMOVAL

Move front wiper into the service position by turning the ignition switch ON, then quickly push the wiper washer switch to the mist position two times within 0.5 seconds.
Turn the ignition switch OFF.
Lift the wiper arm and wiper blade away from the windshield glass.

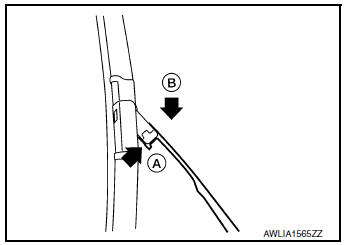

Rotate the wiper blade and push the release tab (A), then move the wiper blade down (B) the wiper arm.

CAUTION: Be careful not to drop the wiper arm onto the windshield glass.

Removal

Remove the wiper blade.

INSTALLATION

Installation is in the reverse order of removal.

NOTE: Insert the front wiper blade onto the front wiper arm until it clicks into place.
