Nissan Rogue Service Manual: Fuel pressure

Nissan Rogue Service Manual / Engine / Engine Control System / Basic inspection / Fuel pressure

Work Procedure

FUEL PRESSURE RELEASE

1.FUEL PRESSURE RELEASE

With CONSULT

Turn ignition switch ON.
Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.
Start engine.
After engine stalls, crank it two or three times to release all fuel pressure.
Turn ignition switch OFF.

Without CONSULT

Remove fuel pump fuse located in IPDM E/R. For the fuse number, refer to EC-105, "Wiring Diagram". For the fuse arrangement, refer to PG-68, "IPDM E/R Terminal Arrangement".
Start engine.
After engine stalls, crank it two or three times to release all fuel pressure.
Turn ignition switch OFF.
Reinstall fuel pump fuse after servicing fuel system.

>> END

FUEL PRESSURE CHECK

CAUTION: Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.

NOTE:

Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pressure cannot be completely released because this models do not have fuel return system.
Use Fuel Pressure Gauge Kit [SST: (J-44321)] to check fuel pressure.

1.FUEL PRESSURE CHECK

Release fuel pressure to zero.

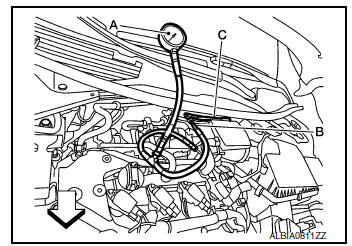

Connect fuel tube adapter [SST:KV10120000] (B) to quick connector.

Fuel pressure check

A : Fuel pressure gauge
C : Fuel feed hose
: Vehicle front

Turn ignition switch ON and check for fuel leakage.
Start engine and check for fuel leakage.
Read the indication of fuel pressure gauge

At idling : Approximately 350 kPa (3.57 kg/cm2, 51 psi)

Is the inspection result normal?

YES >> INSPECTION END

NO >> GO TO 2.

2.CHECK FUEL HOSES AND FUEL TUBES

Check fuel hoses and fuel tubes for clogging.

Is the inspection result normal? YES >> Replace “fuel filter and fuel pump assembly”. Refer to FL-6, "Removal and Installation".

NO >> Repair or replace error-detected parts.
