Nissan Rogue Owners Manual: Interior light
Interior light

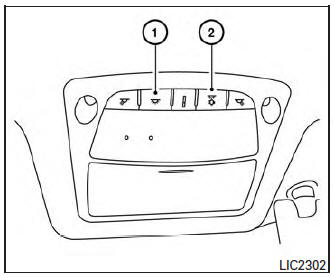

When the ON switch 1 is pressed, the footwell lights (if so equipped), step lights (if so equipped), map lights and rear personal lights will automatically turn on and stay on for a period of time when:
- The doors are unlocked by the Intelligent Key, a key or the request switch (if so equipped) while all doors are closed and the ignition switch is in the OFF position.
- When individually pushed.
When the OFF switch 2 is pushed, the interior lights do not illuminate even when pushed. When the DOOR/OFF switch is pressed and the ON switch is pressed, all of the lights will come on.
NOTE: The footwell lights and step lights illuminate when the driver and passenger doors are open regardless of the interior light switch position. These lights will turn off automatically after a period of time while doors are open to prevent the battery from becoming discharged.
| CAUTION Do not use for extended periods of time with the engine stopped. This could result in a discharged battery. |
Console light (if so equipped)
The console light will turn on whenever the parking lights or headlights are illuminated.
The console light brightness can be adjusted with the illumination brightness control.
Power panoramic moonroof (if so equipped)
The moonroof will only operate when the ignition
switch is placed in the ON position. The moonroof
is operational for a period of time, even if the
ignition switch is placed in the ACC (if so
...
Map lights
Map lights

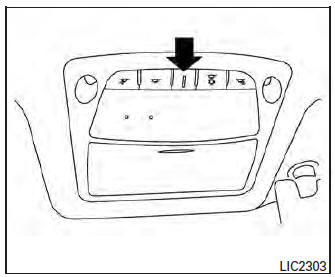

Push the button to turn the map lights on. To turn
them off, press the button again.
CAUTIONDo not use for extended periods of time
with the engine stopped. This could result ...
