Nissan Rogue Owners Manual: Map lights

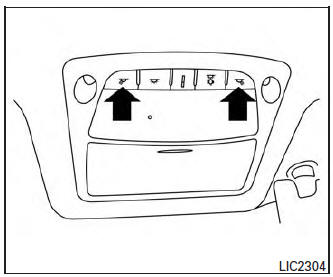

Map lights
Push the button to turn the map lights on. To turn them off, press the button again.
| CAUTION Do not use for extended periods of time with the engine stopped. This could result in a discharged battery. |
Personal Lights (if so equipped)

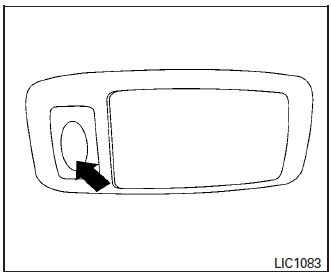

Rear personal lights
To turn the rear personal lights on, press the switch. To turn them off, press the switch again.

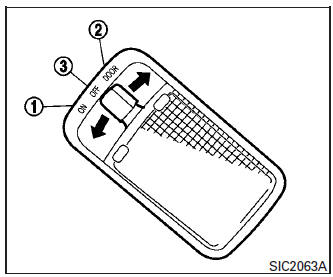

Cargo light
Cargo light
The cargo light on the overhead trim has a threeposition switch. To operate, push the switch to the desired position.
- ON: The light is illuminated.
- DOOR: The light illuminates when the liftgate is opened. The light turns off when the liftgate is closed.
- OFF: The light does not illuminate regardless of liftgate position or lock status.
| CAUTION Do not use for extended periods of time with the engine stopped. This could result in a discharged battery. |
Interior light
Interior light
When the ON switch 1 is pressed, the footwell
lights (if so equipped), step lights (if so
equipped), map lights and rear personal lights
will automatically turn on and stay on f ...
