Nissan Rogue Service Manual: IPDM E/R (intelligent power distribution module engine room)

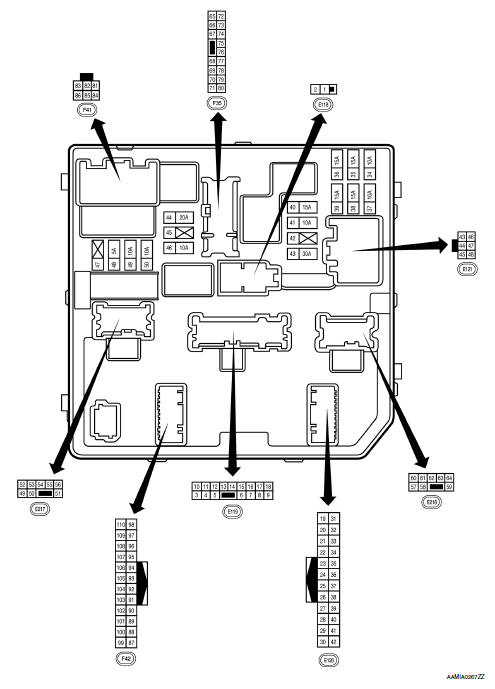

IPDM E/R Terminal Arrangement
Fuse, fusible link and relay box
Terminal Arrangement
FUSE, FUSIBLE LINK AND RELAY BOX 1
FUSE, FUSIBLE LINK AND RELAY BOX 2
RELAY BOX
...
Basic inspection
...
