Nissan Rogue Service Manual: Low tire pressure warning lamp blinks
Description
The low tire pressure warning lamp blinks when the power switch is turned ON.

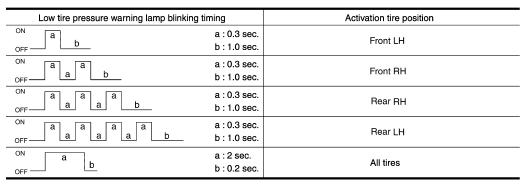

NOTE: The position of an inactive tire pressure sensor can be identified by checking the blinking timing of the low tire pressure warning lamp.
Diagnosis Procedure
1.TIRE PRESSURE SENSOR ID REGISTRATION
Perform tire pressure sensor ID registration. Refer to WT-21, "Work Procedure".
Is tire pressure sensor ID registration completed? YES >> Inspection End.
NO >> Perform the “self-diagnosis” for “AIR PRESSURE MONITOR” of “BCM”. Refer to BCS-48, "DTC Index".
Low tire pressure warning lamp stays on
Low Tire Pressure Warning Lamp Stays On When Ignition Switch Is Turned On
1.CHECK BCM CONNECTORS
Turn ignition switch OFF.
Disconnect BCM connectors.
Check terminals for damage or ...
ID registration cannot be completed
Description
The ID of the tire pressure sensor installed in each wheel cannot be
registered in the tire pressure monitoring
system. Inspect the tire pressure sensor or the tire pressure monitoring ...
