Nissan Rogue Service Manual: Ground

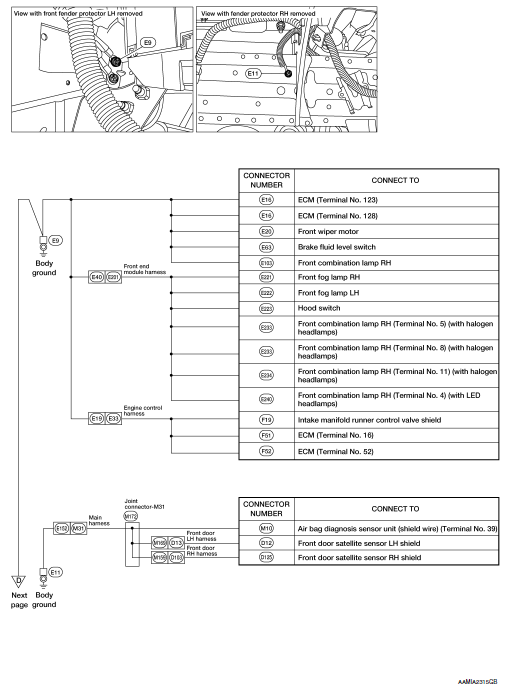

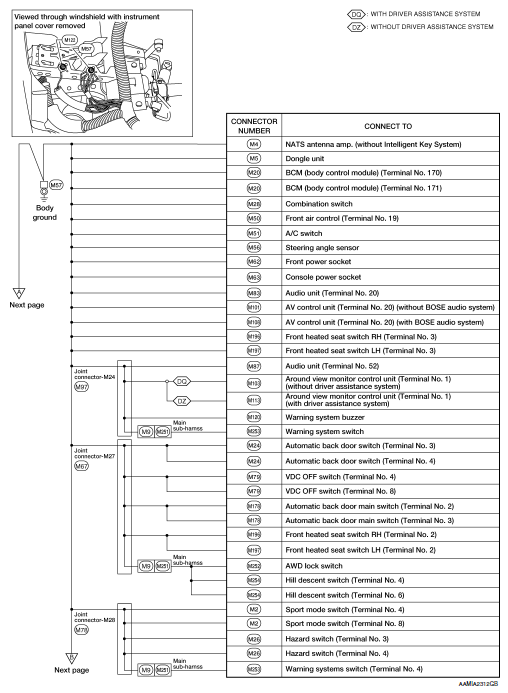

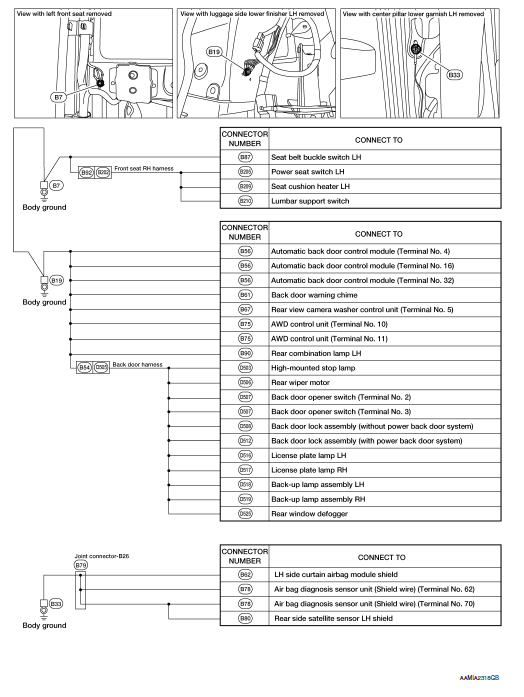

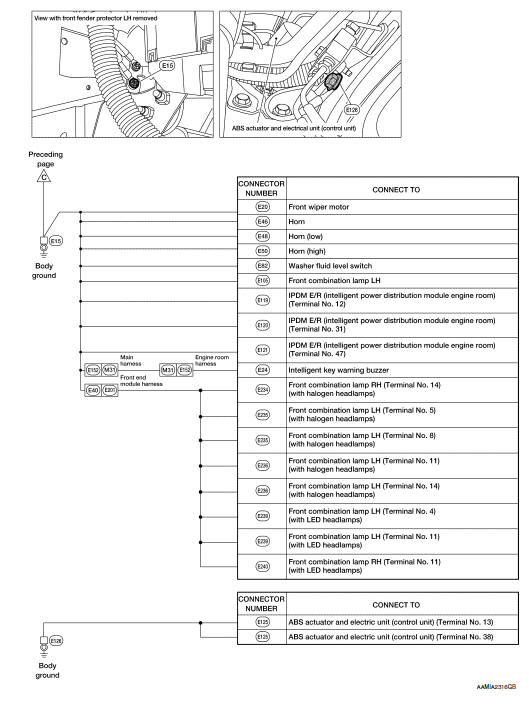

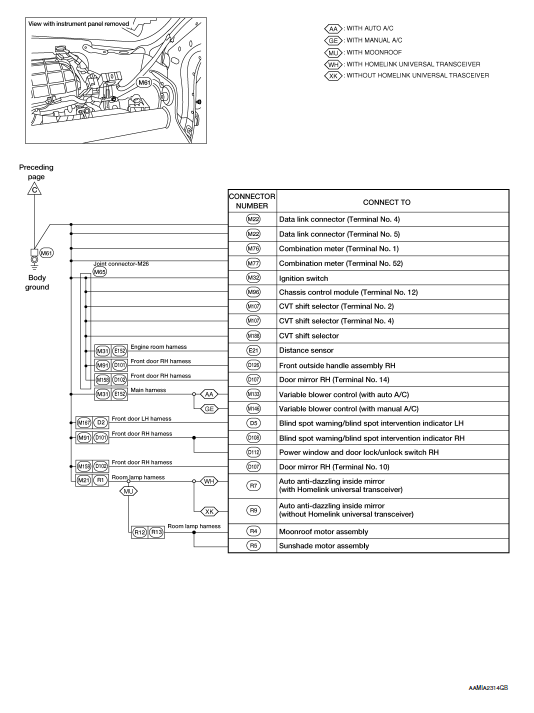

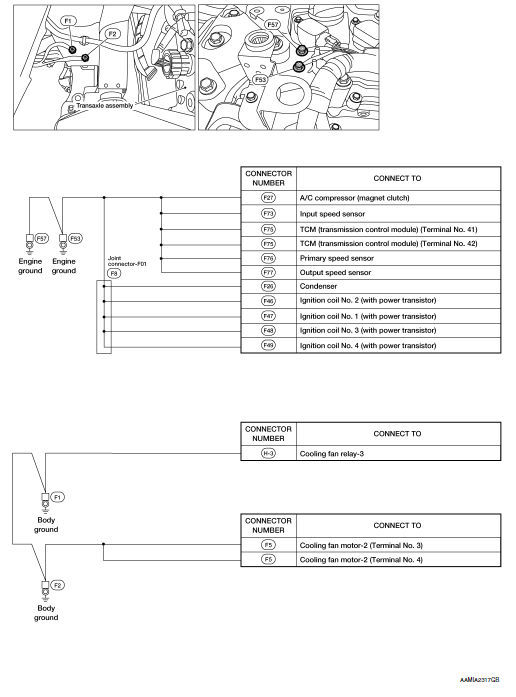

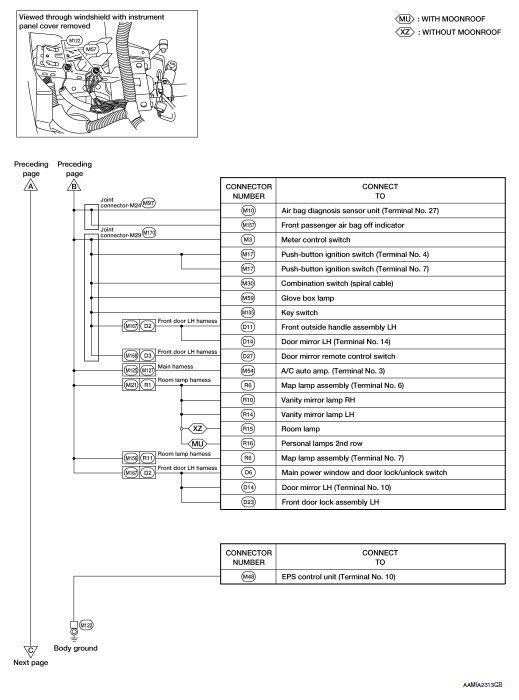

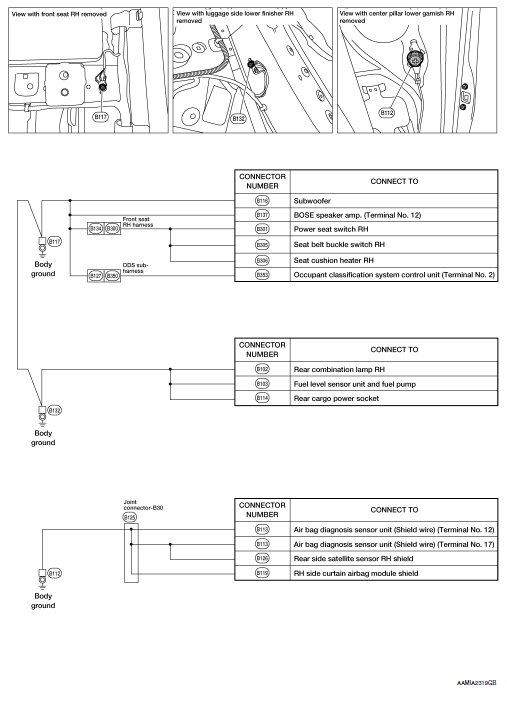

Ground Distribution
MAIN HARNESS
ENGINE ROOM HARNESS
ENGINE CONTROL HARNESS
BODY HARNESS
BODY NO. 2 HARNESS
Power supply routing circuit
Wiring Diagram —Battery Power Supply —
Wiring Diagram —Accessory Power Supply —
Wiring Diagram —Ignition Power Supply —
...
Harness
Harness Layout
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
Main Harness and Main Sub Harness
Engine Ro ...
