FRONT OVER FENDER

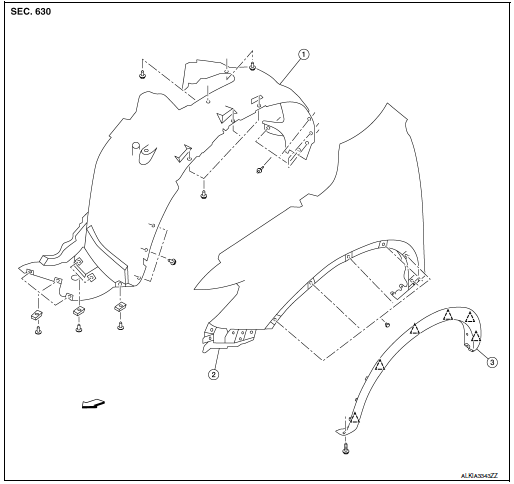

FRONT OVER FENDER : Exploded View

Exploded View

Front fender protector
Front fender
Front over fender molding

Clip

FRONT OVER FENDER : Removal and Installation

REMOVAL

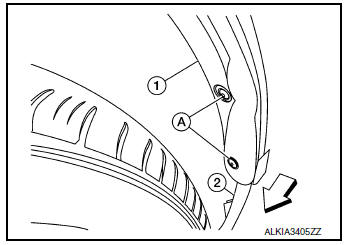

Remove front and rear screw (A).

1: Front over fender
2: Sill molding
: Front

Removal

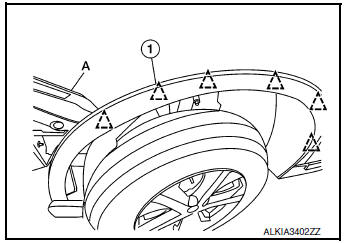

Release clips using suitable tool (A) and remove front over fender (1).
: Clips

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Visually check the clips for deformation and damage during installation. Replace with new ones if necessary.
When installing front over fender molding, check that clips are securely placed in body panel holes.

REAR OVER FENDER

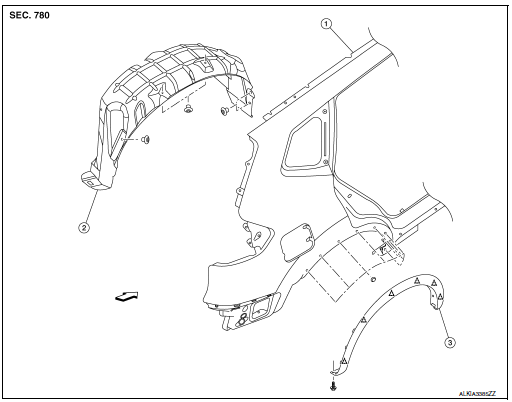

REAR OVER FENDER : Exploded View

Exploded View

Rear fender
Rear wheel house protector
Rear over fender molding

Clip
Front

REAR OVER FENDER : Removal and Installation

REMOVAL

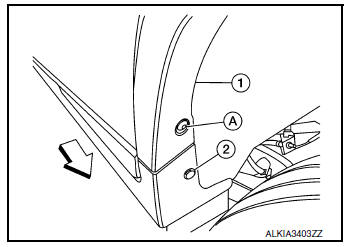

Remove rear over fender molding screws (A).

1: Rear over fender
2: Rear bumper
: Front

Removal

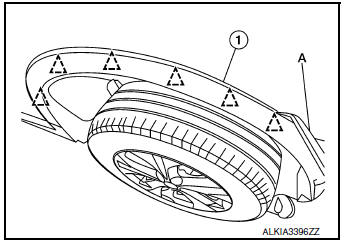

Release clips using suitable tool (A) and remove rear over fender (1).
: Clips

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Visually check the clips for deformation and damage during installation. Replace with new ones if necessary.
When installing over fender molding, check that clips are securely placed in body panel holes.
