Nissan Rogue Service Manual: P0713 transmission fluid temperature sensor A

Nissan Rogue Service Manual / Transmission & driveline / Transaxle & Transmission / Dtc/circuit diagnosis / P0713 transmission fluid temperature sensor A

DTC Description

DTC DETECTION LOGIC

DTC	CONSULT screen terms (Trouble diagnosis content)	DTC detection condition
P0713	FLUID TEMP SENSOR A (Transmission Fluid Temperature Sensor A Circuit High)	When all of the following conditions are satisfied and this state is maintained for 5 seconds: TCM power supply voltage: More than 11 V Vehicle speed: More than 10 km/h (7 MPH) Fluid temperature sensor detection voltage: 2.48 V or more

POSSIBLE CAUSE

Harness or connector (CVT fluid temperature sensor circuit is open or shorted to power supply)
CVT fluid temperature sensor

FAIL-SAFE

Engine coolant temperature when engine start: Temp. ≥ 10°C (50°F)

Start is slow
Acceleration is slow

Engine coolant temperature when engine start: −35°C (−31°F) ≤ Temp. < 10°C (50°F)

Selector shock is large
Start is slow
Acceleration is slow

Engine coolant temperature when engine start: Temp. < −35°C (−31°F)

Selector shock is large
Start is slow
Acceleration is slow

DTC CONFIRMATION PROCEDURE

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

Start the engine.
Maintain the following condition for 10 seconds or more.
Stop the vehicle.
Check the first trip DTC.

Is “P0713” detected? YES >> Go to TM-123, "Diagnosis Procedure".

NO-1 >> To check malfunction symptom before repair: Refer to GI-41, "Intermittent Incident".

NO-2 >> Confirmation after repair: INSPECTION END

Diagnosis Procedure

1.CHECK CIRCUIT BETWEEN TCM AND CVT UNIT (PART 1)

Turn ignition switch OFF.
Disconnect TCM connector and CVT unit connector.
Check continuity between TCM harness connector terminals and CVT unit harness connector terminal

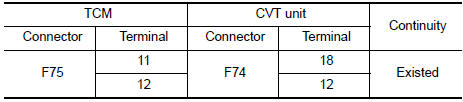

Check circuit between TCM and CVT unit (part 1)

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace malfunctioning parts.

2.CHECK CIRCUIT BETWEEN TCM AND CVT UNIT (PART 2)

Turn ignition switch ON.
Check voltage between TCM harness connector terminal and ground.

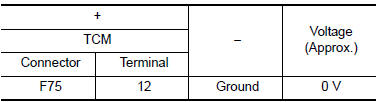

Check circuit between TCM and CVT unit (part 2)

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace malfunctioning parts.

3.CHECK CVT FLUID TEMPERATURE SENSOR

Turn ignition switch OFF.
Check resistance between CVT unit connector terminals.

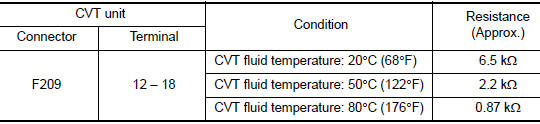

Check CVT fluid temperature sensor

Is the inspection result normal? YES >> INSPECTION END

NO >> There is a malfunction of the CVT fluid temperature sensor. Replace the transaxle assembly.

Refer to TM-220, "Removal and Installation".
