IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

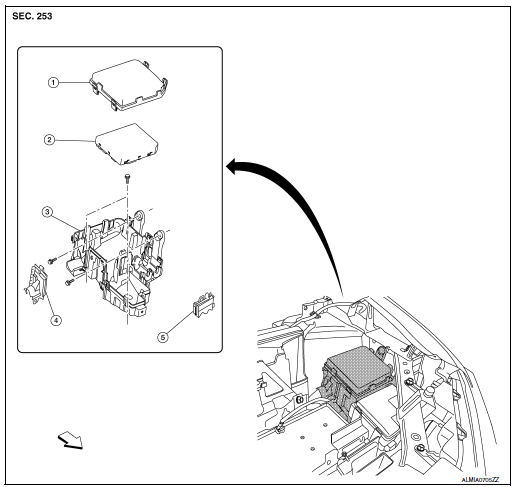

Exploded View

1. IPDM E/R cover
2. IPDM E/R
3. IPDM E/R case
4. IPDM E/R harness cover A
5. IPDM E/R harness cover B

Front

Removal and Installation

CAUTION:  IPDM E/R integrated relays are not serviceable parts, do not remove from the IPDM E/R.

REMOVAL

1.  Disconnect the negative battery terminal. Refer to PG-75, "Removal and Installation (Battery)".
2.  Remove air duct (inlet). Refer to EM-24, "Exploded View".

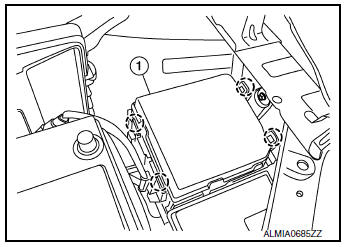

3. Release pawls on IPDM E/R cover (1) and remove.

   : Pawls

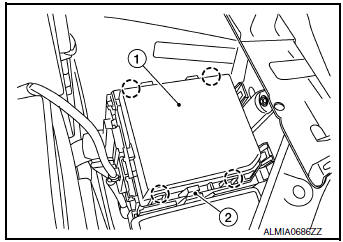

4. Release pawls and remove IPDM E/R (1) from the IPDM E/R case (2).

   : Pawls

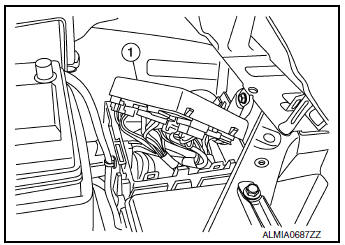

5. Disconnect the harness connectors from IPDM E/R (1).

   CAUTION: Replace the IPDM E/R if it has been dropped or sustained an impact.

6. Release the negative battery cable and harness clips from the IPDM E/R case.
7. Release the pawls on the IPDM/ E/R harness covers A, B and remove from the IPDM E/R case.
8. Remove the bolts from the IPDM E/R case.

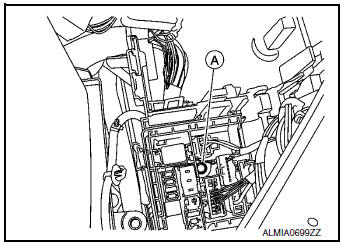

9. Remove the bolt (A) from the fusible link box (battery).

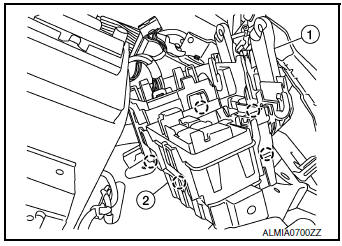

10. Release the pawls on the fusible link box (battery) case (2) and remove from the IPDM E/R case (1).

    : Pawls

INSTALLATION

Installation is in the reverse order of removal.
